Preface: Why Is Partial Discharge Testing a Global Concern?

In high-voltage power engineering, partial discharge (PD) is one of the earliest indicators of insulation failure. Undetected PD can lead to catastrophic breakdowns, costly outages, and safety risks. For overseas utilities, EPC contractors, and testing laboratories, understanding how a Partial Discharge Free Test System operates is essential for ensuring compliance, reliability, and long-term asset performance.

What Is a Partial Discharge-Free Test System?

A Partial Discharge-Free Test System is a specialized high-voltage testing platform designed to generate and withstand test voltages without introducing measurable partial discharge within the system itself. This ensures that any detected PD originates solely from the test object, not from the testing equipment.

By eliminating background interference, the Partial Discharge Free Test System provides highly accurate diagnostic results, especially for transformers, GIS, cables, and high-voltage components.
Internal link suggestion: “Partial Discharge Measurement Principles”

How Does the Technical Principle Eliminate Internal Discharge?

The core principle lies in electric field optimization and material insulation control. The system uses:

• Precision-designed electrode geometry to avoid field concentration
• Multi-layer insulation structures with high dielectric strength
• Shielded connections and PD-free components

Through these measures, the Partial Discharge Free Test System maintains discharge levels below international standard thresholds, typically ≤5 pC, even under elevated test voltages.

Why Is PD-Free Performance Critical in High-Voltage Testing?

In overseas power projects, testing data must be repeatable, comparable, and accepted by third-party inspectors. Any internal PD from the test system compromises credibility.

A stable Partial Discharge Free Test System ensures:

• Accurate insulation diagnostics
• Compliance with IEC and IEEE standards
• Reduced risk of false-positive PD readings

This is especially critical during factory acceptance tests (FAT) and on-site commissioning.
Internal link suggestion: “Factory Acceptance Testing for HV Equipment”

What Applications Require PD-Free Testing Systems?

PD-free systems are widely used across international power sectors, including:

• Power transformer PD testing
• Gas-insulated switchgear (GIS) verification
• High-voltage cable and accessory testing
• Research laboratories and certification bodies

In these scenarios, the Partial Discharge Free Test System acts as the foundation for reliable insulation assessment.

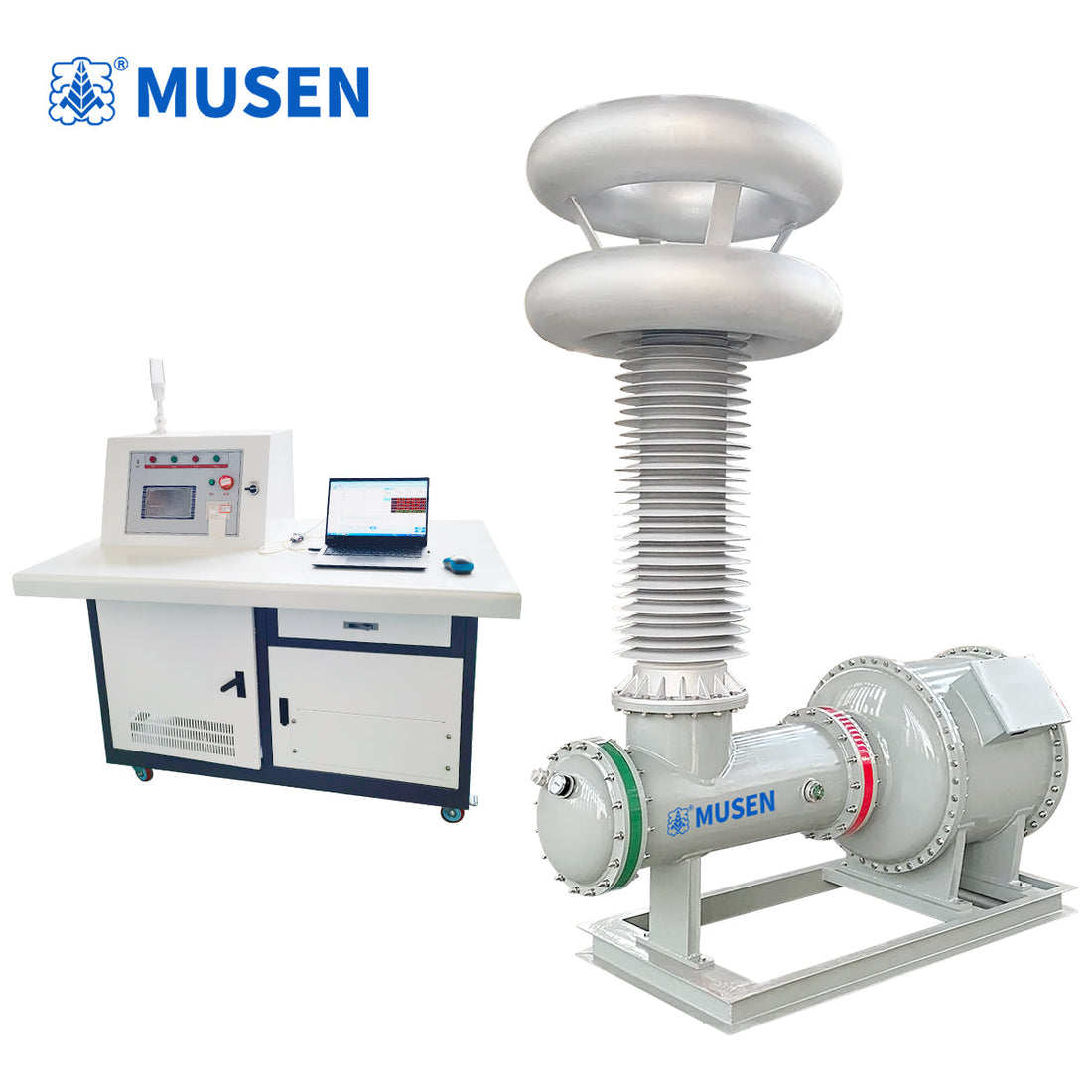

Product Overview: MS-YDQW PD-Free Test System by Wuhan Musen Electric

The MS-YDQW Partial Discharge-Free Test System developed by Wuhan Musen Electric Co., Ltd. is engineered for international power testing environments. Designed with strict PD suppression technology, it delivers stable output, low background noise, and excellent compatibility with modern PD measurement instruments.

Key advantages include:

• Ultra-low inherent partial discharge performance
• Modular design for laboratory and on-site testing
• Compliance with IEC and international testing standards
• High reliability for continuous overseas operation

For global utilities and engineering companies seeking dependable insulation diagnostics, MS-YDQW represents a robust and proven solution.
Official website: https://musenelectric.com/

Is a PD-Free Test System Worth the Investment?

For overseas power engineering projects, the answer is clear. A high-quality Partial Discharge Free Test System is not just a testing tool—it is a safeguard for grid reliability, equipment lifespan, and project credibility. With advanced design and proven performance, systems like MS-YDQW enable engineers to make confident, data-driven decisions in high-voltage environments.
