For overseas power utilities, EPC contractors, and high-voltage testing laboratories, accurate insulation verification is critical to ensure grid reliability and equipment longevity. Wuhan Musen Electric Co., Ltd. (https://musenelectric.com/) has developed advanced partial discharge-free power frequency withstand test systems (1/5) that combine precise control, safety, and reliability. This article explains the working principle, practical applications, and key advantages of these systems.

**### What Is the Working Principle of a Partial Discharge-Free Power Frequency Test System?

A partial discharge-free power frequency withstand test system (2/5) is designed to apply controlled AC voltage to high-voltage equipment while minimizing internal discharges that could interfere with measurements. By using optimized insulation structures, shielding, and low-impedance output, the system ensures that detected partial discharge signals originate from the tested equipment rather than the test device itself. This allows precise evaluation of insulation performance under real operating conditions.

**### Why Is This System Critical for High-Voltage Equipment Testing?

Modern transformers, GIS, and cable systems require extremely low background noise during testing to detect early insulation defects. Using a partial discharge-free power frequency withstand test system (3/5) improves test accuracy, reduces false positives, and ensures compliance with IEC and IEEE international standards. This is essential for overseas projects where quality and reliability are top priorities.

**### Where Are These Systems Commonly Applied?

The system is widely used in factory acceptance tests, on-site commissioning, and laboratory research. Typical applications include transformer insulation verification, high-voltage switchgear testing, and cable AC withstand testing. By ensuring clean and reliable voltage application, the partial discharge-free power frequency withstand test system (4/5) reduces retesting and enhances project efficiency.

**### What Safety and Reliability Features Are Essential?

Reliable overcurrent and overvoltage protection, combined with low-impedance output and robust insulation design, ensures safe operation even under extreme conditions. These features make the partial discharge-free power frequency withstand test system (5/5) suitable for both field and laboratory use, supporting long-term equipment reliability.

As power systems advance toward higher voltages and stricter quality requirements, partial discharge-free power frequency testing has become indispensable. Understanding its principle, applications, and safety features helps overseas users improve test accuracy, reduce operational risk, and maintain compliance with international standards.

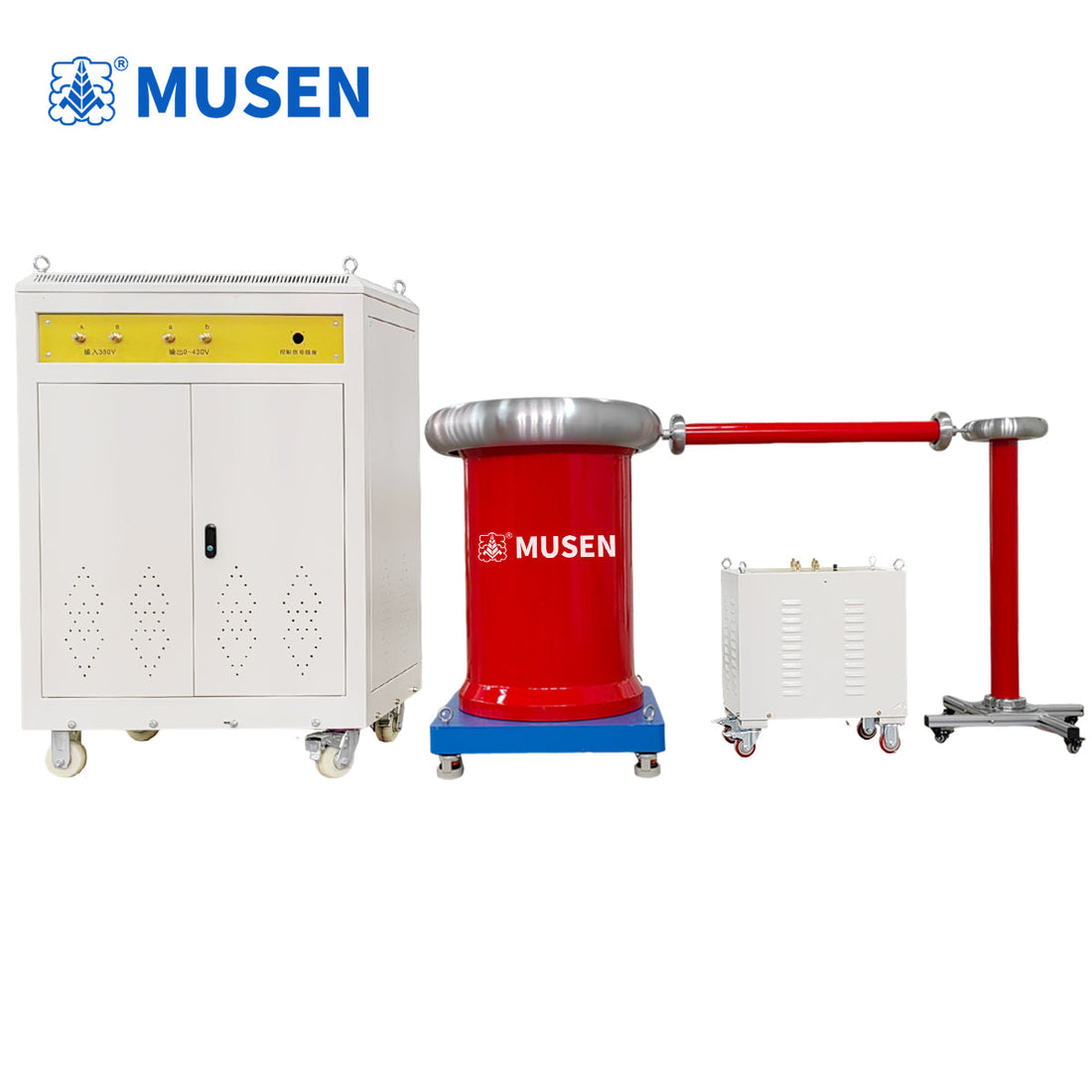

Product Overview: MS-YDJW Oil-Immersed Partial Discharge-Free Test Transformer

Manufactured by Wuhan Musen Electric Co., Ltd. and featured on https://musenelectric.com/, the MS-YDJW oil-immersed partial discharge-free test transformer is an ideal solution for high-precision AC withstand testing. Key advantages include:

• Epoxy cylinder structure for enhanced mechanical strength and insulation stability

• Low-impedance voltage output, exceeding national standard requirements

• High insulation class with partial discharge level ≤5 pC

• Reliable overcurrent and overvoltage protection for safe and stable operation

With its advanced design and robust features, the MS-YDJW model ensures overseas utilities and testing labs can perform precise, safe, and efficient high-voltage insulation testing.
