How Does a Partial Discharge Free AC Test System Ensure High-Voltage Asset Reliability?

 Partial Discharge Free AC Test System, PD Free Test Transformer, YDQW Series, Musen Electric, Dielectric Testing, SF6 Gas Insulation

1. Why is Partial Discharge Sensitivity Critical for Modern Grid Infrastructure?

In the global power industry, the reliability of high-voltage assets like transformers and GIS components is non-negotiable. A Partial Discharge Free AC Test System is the foundational tool for verifying insulation integrity. Unlike standard hipot testers, this system eliminates internal background noise, allowing engineers to identify microscopic voids or impurities that could lead to catastrophic failure. At Wuhan Musen Electric Co., Ltd. (www.musenelectric.com), we provide precision-engineered solutions that ensure your testing environment remains electrically "silent," capturing even the most elusive discharge signals.

2. How Does SF6 Gas Insulation Outperform Traditional Oil-Immersed Systems?

The transition from oil-filled to gas-insulated technology represents a significant leap in testing efficiency. Using an SF6 Insulated PD Free Transformer offers several structural advantages that resonate with international engineering standards:

• Inherent Safety: SF6 is non-flammable and provides superior arc-quenching capabilities compared to oil.

• Maintenance Optimization: Oil-immersed units require periodic oil sampling, dissolved gas analysis (DGA), and filtration. In contrast, gas systems only require monitoring of pressure and density.

• Contamination Control: The fully sealed metal-clad environment prevents moisture and dust from affecting the dielectric strength, ensuring consistent results in varied climates.

3. What Are the Technical Benchmarks of the YDQW Integrated Test System?

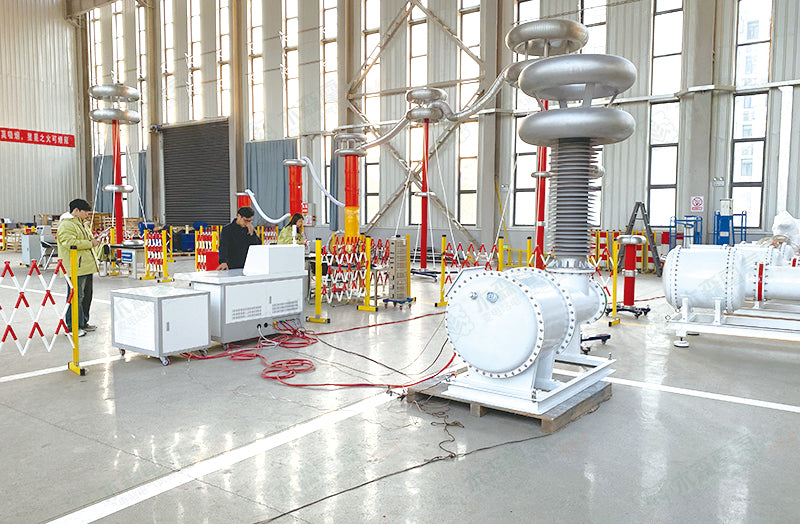

Efficiency in a high-voltage laboratory is measured by accuracy and footprint. The YDQW Partial Discharge Free AC Test System features a highly integrated design where the transformer, coupling capacitor, limit resistor, and voltage divider are housed within a single unit.

• Background Noise Reduction: Traditional modular setups often reach 10pC due to external connections; our integrated system limits total discharge to ≤ 5pC.

• Weight & Portability: The lightweight structure significantly reduces installation time and transport costs for site-commissioning projects.

• Standard Compliance: Our systems are designed to meet IEC and IEEE standards for high-voltage dielectric testing.

4. How Do Different YDQW Models Support Diverse Industrial Applications?

Selecting the correct capacity is vital for matching the capacitive load of the test object (EUT). Musen Electric offers a range of standardized configurations:

• YDQW 30kVA / 100kV: Ideal for testing 10kV-35kV class insulators and small bushings.

• YDQW 50kVA / 250kV: Optimized for medium-voltage cable segments and instrument transformers.

• YDQW 250kVA / 550kV: Engineered for high-voltage power transformer testing and research institutes.

  These systems provide a clean, oil-free testing environment, ensuring that your laboratory stays compliant with modern environmental and safety regulations.

5. Frequently Asked Questions Regarding PD Free Testing

Q: What is the main maintenance requirement for a gas-insulated test system?

A: Unlike oil-filled systems that require complex filtering, the YDQW series only requires periodic checks of the gas pressure and density. This "set and forget" approach lowers the long-term cost of ownership.

Q: Can the background noise be lower than 5pC?

A: Yes, with proper laboratory grounding and shielding, the background noise of our integrated system can be further minimized, providing the highest sensitivity for research-grade dielectric analysis.

Q: How does the integrated design impact transport and installation?

A: Because the coupling capacitor and divider are built-in, there is no need for complex external wiring on-site. This reduces the footprint by up to 40% and allows for rapid deployment in mobile testing vans or crowded factory floors.
