For overseas power utilities and EPC contractors, reliable commissioning of high-voltage cable systems is a decisive step before grid energization. Recently, Wuhan Xinzou Pump Station completed its 110kV cable AC withstand voltage test using a series resonant test system (1/5). This news-style report explains how the test was executed, what technical questions it answers for asset owners, and why the selected solution meets international engineering expectations.

### Project Background: Why Was the Test Necessary?

The Wuhan Xinzou Pump Station is a key infrastructure project supporting regional water management and grid reliability. Before commissioning, the 110kV XLPE power cables required an AC withstand voltage test to verify insulation integrity under operating stress.

### Test Method Selection: Why Choose AC Series Resonance?

Compared with DC testing, AC withstand voltage testing better simulates real operating conditions of high-voltage cables. By applying controlled resonance, the series resonant test system (2/5) minimizes power demand while delivering stable high voltage, making it especially suitable for long-distance or large-capacity cables.
Internal link suggestion: Link to a technical article on “AC vs DC High Voltage Testing”.

### On-Site Configuration: How Was the Test Implemented?

The test setup integrated a variable-frequency power supply, excitation transformer, and reactor to form a tuned resonant circuit. During现场 operation, engineers adjusted frequency to reach resonance, ensuring smooth voltage rise and precise control. The series resonant test system (3/5) maintained stable output throughout the full test duration, with protection mechanisms actively monitoring system status.

### Test Results: What Did the Data Prove?

The 110kV cable successfully withstood the specified AC voltage without partial discharge or insulation breakdown. Recorded parameters confirmed uniform electric stress distribution and compliance with acceptance criteria. These results demonstrate that a properly tuned series resonant test system (4/5) can deliver repeatable, standards-compliant outcomes for utility-scale projects.

 What Does This Mean for Global Power Projects?

This successful test at Wuhan Xinzou Pump Station highlights how modern resonance-based testing ensures safety, efficiency, and data reliability. For international users, adopting a proven series resonant test system (5/5) reduces commissioning risk and supports long-term asset performance.

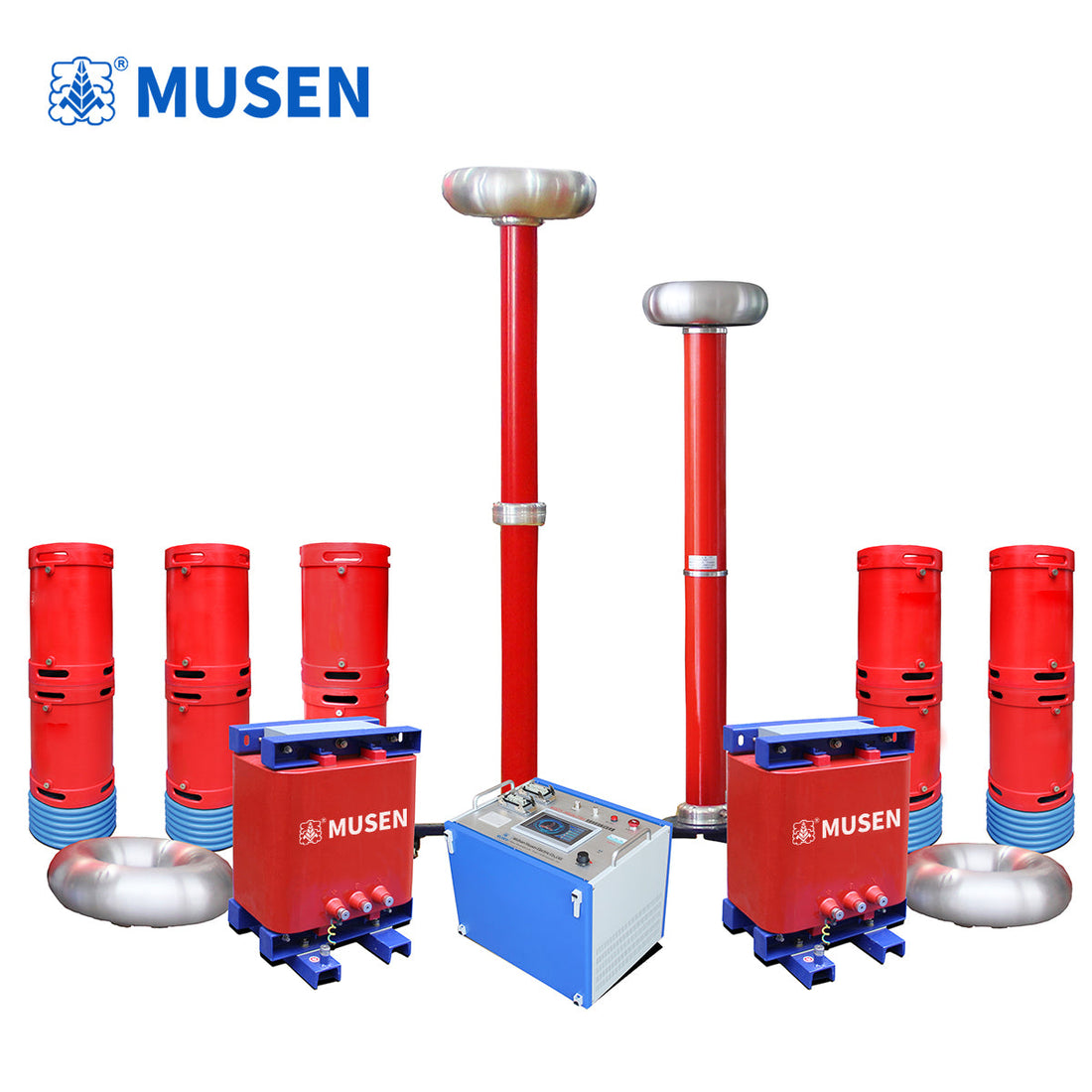

Product Overview: MSXB-F-540kVA 270kV Series Resonant System

Manufactured by Wuhan Musen Electric Co., Ltd. and presented on its official website https://musenelectric.com/, the MSXB-F-540kVA 270kV system is designed for demanding field applications. Key advantages include:

• Comprehensive protections: overvoltage, overcurrent, zero-start, and detuning (flashover) protection
• Lightweight single-unit components for easy transportation and on-site assembly
• Multiple operating modes: fully automatic, manual, and automatic tuning with manual voltage rise
• Data storage with remote printing; numeric indexing for fast identification and retrieval
• Flexible frequency sweep with user-defined starting frequency within specified ranges
• Advanced DSP platform enabling functional expansion, system upgrades, and a highly user-friendly HMI

This combination of safety, portability, and intelligent control makes the MSXB-F-540kVA 270kV system a reliable choice for overseas power utilities and engineering contractors seeking professional-grade AC withstand voltage testing solutions.
