How Can Mastering the Principle of GIS No Partial Discharge Test Equipment Improve Power Testing Accuracy?

In high-voltage substations, insulation reliability directly determines system safety and long-term operational stability. For engineering contractors and power utilities worldwide, improving testing accuracy is no longer optional—it is essential. Understanding the operating mechanism behind GIS No Partial Discharge Test Equipment enables engineers to enhance diagnostic precision, reduce commissioning risks, and meet international compliance standards.

This article explains how mastering its working principle contributes to higher testing accuracy and why it matters for overseas power projects.
Official website: https://musenelectric.com/

Why Does Testing Accuracy Matter in GIS Systems?

Gas Insulated Switchgear (GIS) operates under high electric field intensity. Even minor insulation defects can lead to long-term degradation or catastrophic failure.

Accurate testing ensures:

• Early detection of insulation weakness

• Compliance with IEC high-voltage testing standards

• Reduced operational downtime

• Improved asset lifecycle management

When testing precision is insufficient, false readings or undetected discharge risks may compromise grid stability.

What Is the Working Principle Behind GIS No Partial Discharge Test Equipment?

The GIS No Partial Discharge Test Equipment is based on controlled resonant voltage boosting and ultra-low background discharge design.

Its core principles include:

1. Resonant AC voltage generation for stable output

2. Harmonic filtering to maintain waveform purity

3. Shielded structure to minimize external electromagnetic interference

4. Precision voltage regulation and monitoring system

By ensuring a clean sinusoidal waveform and eliminating external noise interference, the system validates GIS insulation without introducing artificial discharge signals.

Understanding this principle allows engineers to interpret data correctly and avoid misjudgment during commissioning.

How Does Mastery of the Principle Improve Testing Precision?

When operators fully understand the system’s operating logic, several improvements occur:

• Accurate voltage ramp control

• Proper resonance matching

• Reliable background noise discrimination

• Correct interpretation of insulation margins

This technical awareness reduces false positives and prevents unnecessary equipment replacement.

The GIS No Partial Discharge Test Equipment becomes more than a testing device—it becomes a precision diagnostic tool when used with proper technical understanding.

What Are the Key Application Scenarios in International Projects?

Overseas EPC contractors and grid operators typically apply this equipment in:

• Pre-commissioning acceptance tests

• Factory routine testing before export

• Preventive maintenance programs

• Retrofit verification in aging substations

In regions with extreme humidity, desert dust, or high-altitude conditions, accurate insulation testing is critical to prevent long-term failures.

The GIS No Partial Discharge Test Equipment ensures consistent measurement performance across different environmental conditions.

How Does Advanced Design Enhance Measurement Reliability?

Modern systems incorporate:

• High Q-factor reactor design

• Digital measurement interface

• Modular structure for transport efficiency

• Strong anti-interference capability

These features improve repeatability and data stability, which are essential for substations above 110kV and 220kV.

By mastering operational principles, engineers can maximize the performance advantages of the GIS No Partial Discharge Test Equipment and achieve higher testing accuracy.

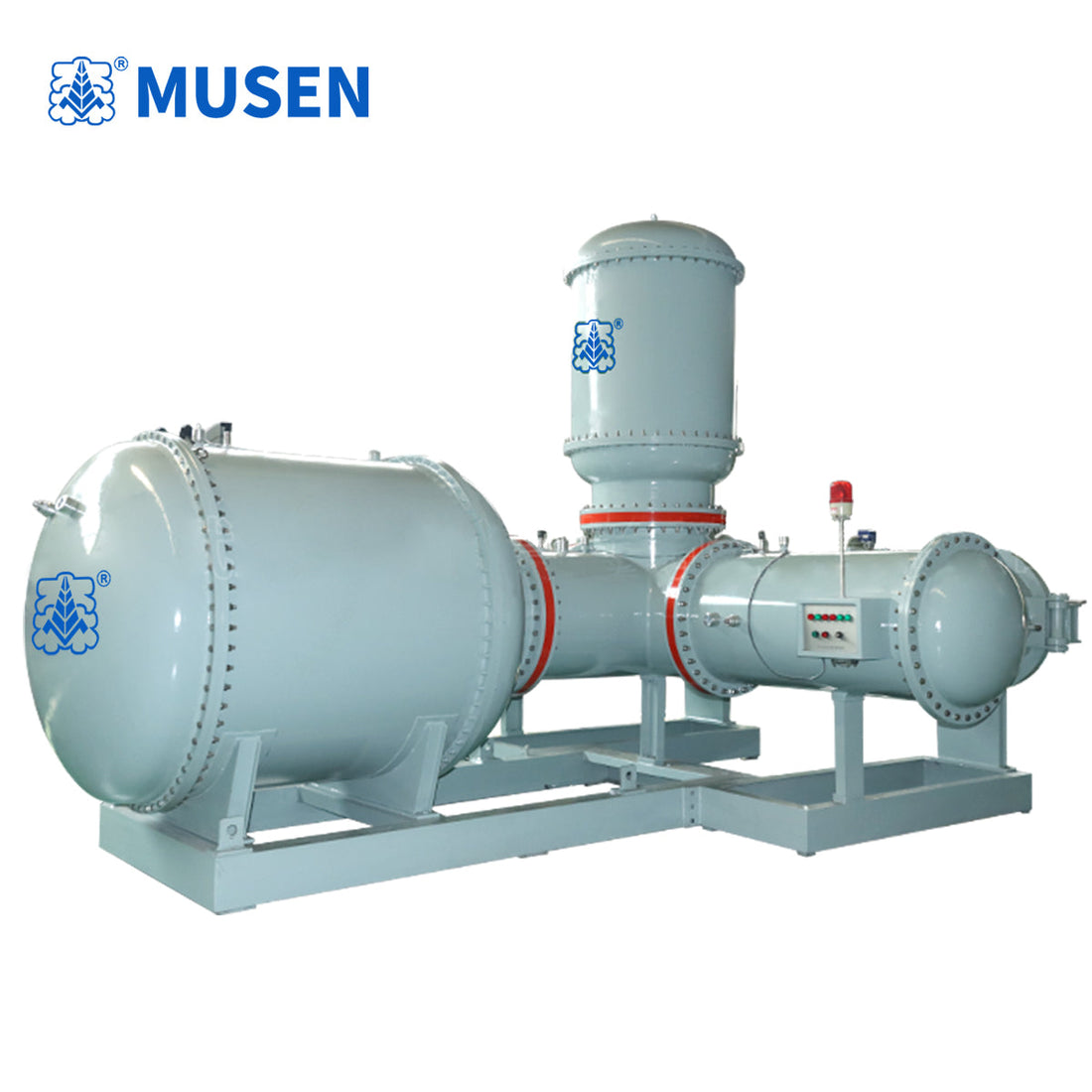

Product Overview and Advantages – GIS No Partial Discharge Test Equipment

Wuhan Musen Electric Co., Ltd. specializes in high-voltage testing solutions for global power utilities and engineering companies. The GIS No Partial Discharge Test Equipment developed by the company is designed to deliver precise, stable, and compliant insulation verification for GIS systems.

Key advantages include:

• Advanced resonant voltage boosting technology

• Ultra-low background discharge level

• High waveform purity and stability

• Digital monitoring for accurate data acquisition

• Modular and compact design for international logistics

• Compliance with international testing standards

By combining stability, precision, and strong anti-interference performance, this equipment supports higher testing accuracy and reduces insulation risk before energization.

Mastering the working principle of GIS insulation testing technology is fundamental to improving measurement accuracy in modern substations. From resonant voltage generation to noise suppression and precision monitoring, every technical element contributes to reliable results.

For global power engineering companies seeking dependable and high-accuracy GIS testing solutions, Wuhan Musen Electric Co., Ltd. provides professional-grade equipment engineered to meet international project requirements and long-term grid reliability goals.
