How Can Advanced Cable Accessory Manufacturer Preventive Testing Eliminate Sudden Subterranean Grid Outages?

Cable Accessory Manufacturer Preventive Testing, high-voltage grid diagnostics, power cable termination validation, series resonant diagnostic tool

Discover how high-voltage grid operators protect underground assets. Learn the engineering methods for Cable Accessory Manufacturer Preventive Testing across 35kV-220kV circuits to stop catastrophic joint failures.

Ensuring localized grid resilience within subsurface high-voltage infrastructure requires rigorous quality assurance. Statistical data shows over 70% of underground transmission failures originate at termination zones and joint connections due to thermal loading and insulation anomalies rather than cable body degradation. To systematically eliminate these vulnerabilities, engineering teams rely on a structured approach to **Cable Accessory Manufacturer Preventive Testing** as a core asset preservation strategy.

### 1. What Are the Specified Voltage Tiers and Lifecycle Operational Boundaries?

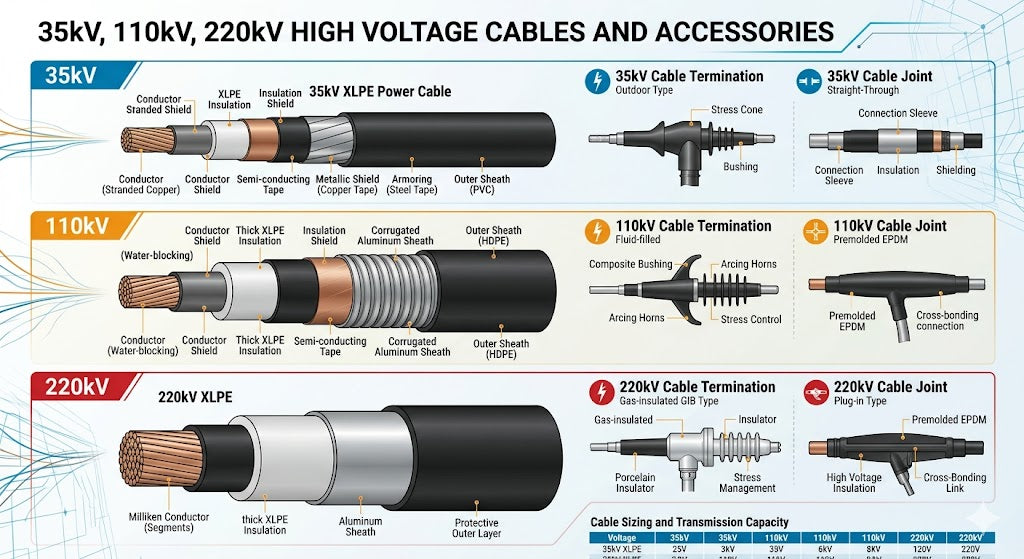

Field installations require distinct testing parameters adjusted to the network voltage level. Professional testing workflows cover three primary utility divisions:

* 35kV Medium-Voltage Networks: Common in renewable energy collection arrays, requiring efficient field diagnostics to manage insulation wear from load changes.
* 110kV Regional Transmission Lines: The foundation of municipal power distribution, demanding precise dielectric validation before energization to protect critical city loads.
* 220kV Extra-High Voltage Bulk Links: High electrical and thermal stress levels require specialized resonant setups to test XLPE insulation safely.

Engineering protocols divide these checks into material receiving verification, pre-commissioning handover, and scheduled diagnostic maintenance.

### 2. How Do DC High-Voltage Generators Verify Outer Sheath Soundness?

The outer plastic sheath protects the inner cable metallic shielding against moisture ingress and soil corrosion. Microscopic punctures during trench backfilling create a path for water entry, which can lead to destructive water treeing within insulation.

Wuhan Musen Electric Co., Ltd. configured the MSZGF 120kV/2mA DC High Voltage Generator to address this risk. Field crews apply a stabilized DC voltage between the metallic shield and ground to measure leakage current down to nano-ampere levels. This precise field diagnostic process evaluates sheath integrity across extensive high-voltage circuits without risking structural damage to the primary insulation.

### 3. Why Are Series Resonant Systems Crucial for Main Insulation Testing?

High-voltage power cables possess high electrical capacitance ($C$). Attempting to run field tests with standard 50Hz utility power would require massive, impractical power transformers. Series resonance solves this challenge.

The MSXB-F Series Resonant Device balances system inductive reactance against the cable capacitance. At the resonant frequency, the power source only needs to supply the loop's real energy losses, reducing total equipment footprint by up to 95%. This clean sinusoidal AC waveform accurately replicates actual grid operating conditions, which makes it ideal for testing main insulation on 110kV and 220kV circuits without generating harmful space-charge accumulation.

### 4. When Should Engineers Deploy 0.1Hz Very Low Frequency (VLF) Testing?

On shorter high-voltage lines or in tight urban spaces where heavy resonant machinery is difficult to transport, 0.1Hz VLF diagnostics provide a highly portable and effective alternative.

Operating at 0.1Hz reduces the physical power requirement by a factor of 500 compared to standard power frequencies. Using a VLF High Voltage Generator (0.1Hz) allows technicians to perform reliable dielectric withstand testing on XLPE main insulation using compact equipment. The 0.1Hz stress safely triggers breakdowns at hidden defects and water trees without damaging adjacent healthy insulation layers.

### 5. How Do Tan Delta and Insulation Resistance Metrics Catch Hidden Moisture?

Material receiving inspections rely on dielectric loss factor (Tan Delta, $\tan\delta$) and absolute insulation resistance to identify hidden shipping damages or manufacturing anomalies before field deployment.

* Dielectric Loss Factor: The MS-101G Dielectric Loss Tester uses vector mathematical bridges to filter out electromagnetic noise in substations, measuring structural insulation loss factor trends to detect trace internal moisture.
* Resistance and Polarization Index (PI): The MS-3126 Insulation Resistance Tester tracks long-term leakage current trends, calculating the Polarization Index ($PI = R_{10min} / R_{1min}$) to verify insulation purity.
* Conductor Verification: The MS-510R DC Resistance Tester employs a four-terminal Kelvin setup to measure core wire resistance to micro-ohm tolerances, confirming proper conductor drawing and cross-sectional quality.

### 6. What Equipment Optimizes Connection Interface Joint Diagnostics?

Mechanical compression splices and bolted contacts within cable joints can loosen or oxidize over time due to thermal cycling, leading to hot spots and joint failure.

To verify joint security, maintenance teams use the MSHL-100A Loop Resistance Tester. The instrument passes a stable 100A DC current directly through the assembled contact interfaces to measure contact resistance at micro-ohm levels. Catching these localized resistance anomalies helps grid operators prevent joint failure under heavy loads.

### 7. How Does Online Partial Discharge Diagnostics Safeguard Live Circuits?

While offline testing provides an excellent snapshot of asset condition, it requires a complete circuit shutdown. Online monitoring allows engineers to evaluate accessory health under real-world thermal and electrical loads with zero service disruptions.

The MSJF-3001B Handheld Partial Discharge Detector allows inspection teams to trace internal tracking anomalies. Using High-Frequency Current Transformers (HFCT) along with transient earth voltage and acoustic sensors, the device detects the tiny high-frequency electromagnetic pulses emitted by insulation voids. This provides an effective early-warning tool to identify accessory failure before a catastrophic fault occurs.

### 8. High-Voltage Diagnostic Equipment Allocation Matrix

| Parameter Checked | Equipment Model | Engineering Function |
| --- | --- | --- |
| Sheath Integrity | MSZGF 120kV/2mA | Outer Sheath DC Withstand Testing & Leakage Current |
| Main AC Dielectric | MSXB-F Series | Main Insulation AC Series Resonant Withstand Testing |
| Portable AC Withstand | VLF Generator (0.1Hz) | 0.1Hz XLPE Insulation Dielectric Withstand Testing |
| Dissipation Factor | MS-101G | Dielectric Loss Factor ($\tan\delta$) & Structural Aging Screening |
| Insulation Resistance | MS-3126 | Insulation Resistance & Polarization Index Analysis |
| Conductor Resistance | MS-510R | Micro-ohm Core Conductor Material Verification |
| Joint Contact Quality | MSHL-100A | 100A Interface Loop Contact Resistance Testing |
| Live Insulation Status | MSJF-3001B | Online Partial Discharge Tracking (Zero Grid Downtime) |

For further details on equipment configurations and technical specifications, visit [www.musenelectric.com](https://www.musenelectric.com).

### 9. Frequently Asked Questions (FAQ)

Q1: Why is AC series resonant testing safer than high-voltage DC options for XLPE cable accessories?
Sustained DC potential creates trapped, localized space charges inside the molecular structure of modern XLPE materials. When the system returns to AC power, these trapped charges distort the local electric field, accelerating breakdown and causing premature asset failure. Resonant systems like the MSXB-F series deliver clean AC stress that matches real-world grid conditions safely.

Q2: What do variations in the Polarization Index (PI) indicate during material acceptance inspections?
The Polarization Index is the ratio of insulation resistance at 10 minutes to the resistance at 1 minute ($PI = R_{10min} / R_{1min}$). In clean, dry insulation, the charging current drops steadily over time as molecules align, yielding a high PI (above 2.0). A low or flat PI trend suggests internal moisture or contamination within the cable accessory.

Q3: Can handheld online partial discharge screening completely replace offline AC withstand testing?
No, the two methods are complementary. Handheld online tools like the MSJF-3001B excel at identifying active defect tracking under normal load conditions without requiring an outage. However, online screening cannot apply over-voltage stress to verify safety margins. Offline AC withstand testing remains essential during commissioning and after repairs to ensure the system can handle transient switching surges.
