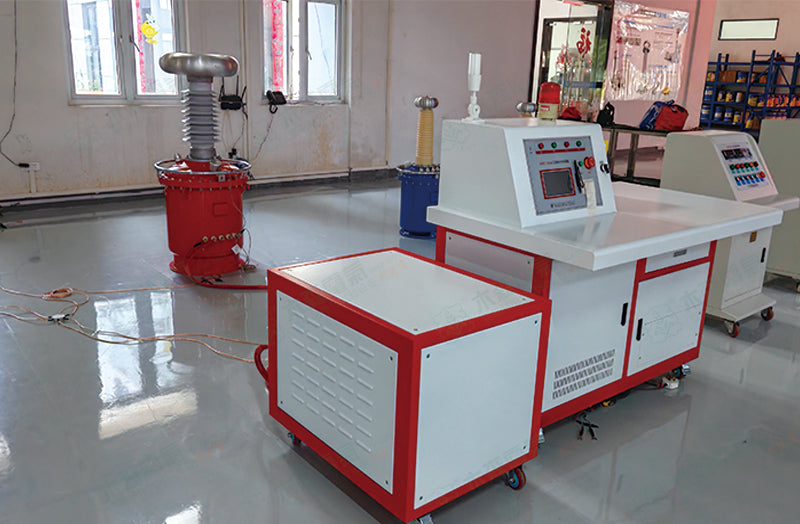

High-Voltage Equipment Manufacturing and Quality Assurance Applications of Integrated PD Test Systems
High-Voltage Equipment Manufacturing and Quality Assurance Applications of Integrated PD Test Systems
The No Partial Discharge AC Dielectric Test Set (MSYDQ Series) delivers high-precision dielectric testing with background partial discharge levels suppressed to ≤3pC across voltage ratings from 50kV to 1000kV. Engineered for power apparatus manufacturers, national metrology institutes, and field diagnostic teams, this integrated test platform verifies insulation strength on transformers, gas-insulated switchgear (GIS), instrument transformers, HV cables, and live-working tools according to IEC and IEEE standards.
How Do Power Apparatus Manufacturers Utilize Integrated High-Voltage Test Sets?
Original Equipment Manufacturers (OEMs) producing power transformers, GIS assemblies, and high-voltage bushings require partial discharge testing during factory acceptance testing (FAT). Micro-voids or metallic contaminants inside insulation materials can lead to catastrophic insulation breakdown during service.
Utilizing an integrated No Partial Discharge AC Dielectric Test Set allows manufacturers to conduct routine AC withstand tests (IEC 60060-1) and PD measurements (IEC 60270) without background noise masking signals. The integrated No Partial Discharge AC Dielectric Test Set provides stable voltage output with low harmonic distortion (<3%), ensuring test conditions match theoretical insulation stress models.
What Role Does Gas Insulation Play in Research and Accredited Calibration Labs?
Electrical engineering university laboratories, state power research facilities, and third-party testing laboratories (such as those accredited under ISO/IEC 17025) require testing systems with verified reference stability. The gas-insulated non-partial discharge test transformer) provides a quiet background environment essential for calibrating external PD sensors, including UHF antennas, transient earth voltage (TEV) sensors, and high-frequency current transformers (HFCT).
| Target Sector | Primary Test Asset (DUT) | Applicable Testing Standard | Key Test Parameters Provided |
|---|---|---|---|
| GIS / GIL Manufacturers | Gas-Insulated Switchgear & Lines | IEC 62271-203 / IEEE C37.122 | Power frequency withstand, PD ≤ 3 pC baseline |
| Transformer Factory (OEM) | Power & Distribution Transformers | IEC 60076-3 / IEEE C57.12.90 | Applied voltage AC withstand, induced overvoltage testing |
| Cable Manufacturers | XLPE High-Voltage Cables | IEC 60840 / IEC 62067 | Continuous AC stress testing, dielectric loss tan δ assessment |
| Power Research Institutes | New Nanocomposite Insulation | IEC 60270 / ASTM D149 | Dielectric breakdown strength, PD inception voltage (PDIV) |
| Grid Utility Service Teams | Substation On-Site Maintenance | DL/T 474 / IEEE 400.2 | Field AC withstand verification, safety tool integrity checks |
How Do Field Maintenance Teams Benefit from Portable Gas-Insulated Architectures?
Field diagnostic engineers performing commissioning tests on newly installed GIS or re-testing retrofitted power cables need portable high-voltage sources. Traditional oil-immersed test transformers present transport difficulties due to weight restrictions and hazardous material shipping regulations.
The compact design of the (non-partial discharge test system) solves these field challenges. Featuring a sealed SF6 tank enclosure, the (non-partial discharge test transformer) can be mounted on mobile testing trailers without oil leakage risks. When paired with variable frequency power sources (30–300 Hz), the system delivers high-voltage output while drawing minimal power from local diesel generators or site distribution boards.
How Does the System Enhance Safety During Destructive Dielectric Testing?
During material breakdown tests, the test specimen transitions from an insulating state to a short circuit in microseconds. A robust (gas-insulated high-voltage test transformer system) must withstand these repeated short-circuit current surges without insulation degradation.
The MSYDQ (gas-insulated AC non-partial discharge high-voltage test device) integrates an internal current-limiting reactor and fast-acting discharge protection logic. This design dampens high-frequency current spikes, protecting primary winding structures and maintaining operational integrity over thousands of breakdown cycles.
Frequently Asked Questions
Q: What is the maximum test voltage available for field-portable MSYDQ units?
A: Portable vehicle-mounted MSYDQ configurations typically offer output ratings from 100kV up to 300kV. Higher rating options (up to 1000kV) are available for permanent indoor high-voltage laboratory applications.
Q: Does the MSYDQ system comply with IEC 60270 partial discharge calibration routines?
A: Yes. The system includes standard signal coupling ports compatible with all standard IEC 60270 partial discharge calibrators, enabling fast verification of scale factors (pC) prior to testing.
