Field Testing 6kV–500kV XLPE Cables Using a Resonance Test System

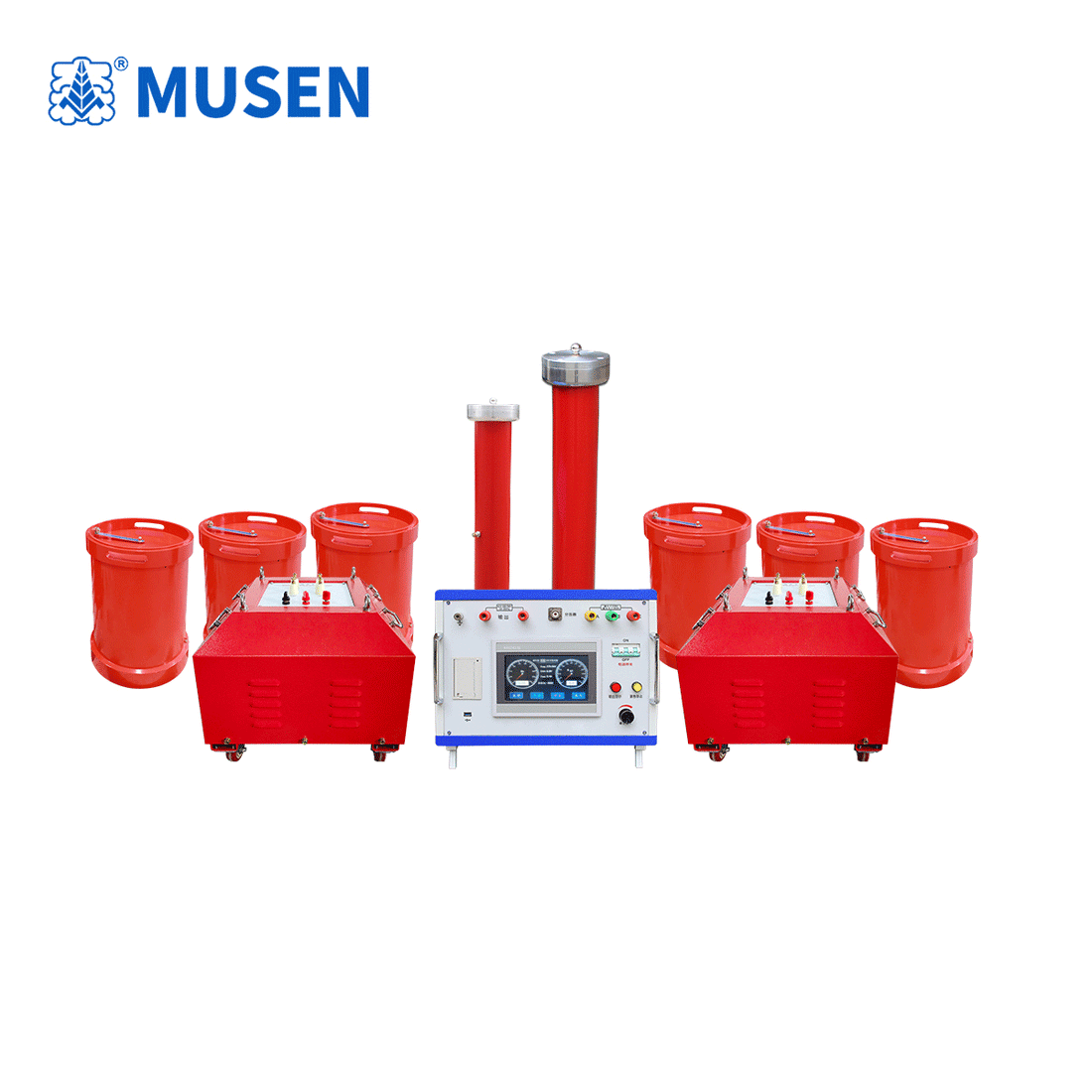

A specialized Cable Resonant Test System utilizes a variable frequency power source to perform AC withstand testing on long-distance, high-capacitance cross-linked polyethylene (XLPE) cables. Available via www.musenelectric.com, a Resonance Test System (also referred to as a Variable-frequency series resonant test system) adjusts output frequency between 20 Hz and 300 Hz to achieve electrical resonance, satisfying IEC 60840 and IEC 62067 field acceptance standards.
Operational Mechanics of Cable Resonant Testing
Using a Series resonant test system overcomes the current limitations of conventional AC equipment. High-voltage cables act as large capacitors. By linking modular reactors in series, a Series resonant test device or AC series resonant test system balances capacitive current with inductive reactor energy, delivering up to hundreds of kilovolts while drawing minimal utility current.
Standard Cable Testing Configurations
| Cable Class | Test Voltage Range | Frequency Range | Target Standard |
|---|---|---|---|
| Medium Voltage (6kV – 35kV) | 10 kV – 52 kV | 20 Hz – 300 Hz | IEC 60502-2 |
| High Voltage (66kV – 220kV) | 64 kV – 216 kV | 20 Hz – 300 Hz | IEC 60840 |
| Extra High Voltage (220kV – 500kV) | 216 kV – 400+ kV | 20 Hz – 300 Hz | IEC 62067 |
Broad Applications Across Substation and Generation Assets
Beyond cable commissioning, a complete Series resonant test device or AC series resonant test system covers diverse utility equipment:
- Power Transformers: Applied voltage withstand verification (IEC 60076-3).
- GIS & SF6 Switchgear: Site acceptance testing (IEC 62271-203).
- Hydro/Turbo Generators: AC insulation testing (IEEE 95).
- Substation Components: Busbars, CTs, PTs, and bushings (IEC 60137).
Safety Features and High Power Quality
A modernSeries resonant test system incorporates dynamic protection features. Integrated circuits ensure overvoltage, overcurrent, thermal, and zero-start protections activate in ≤1 microsecond. The pure sine output features total harmonic distortion below 0.3%, protecting main transformers and generators from severe high-frequency voltage stress during insulation evaluation.
Frequently Asked Questions
Q: Why is DC withstand testing no longer recommended for XLPE cables?
A: DC testing accumulates spatial charges inside polymeric insulation, creating treeing degradation and potential dielectric breakdown when returned to AC service.
Q: How do modular reactors assist in high-capacity cable testing?
A: Modular reactors can be connected in series or parallel to match the precise capacitance of short or extremely long cable lengths.
