Substation On-Site Commissioning Using a Resonance Test System

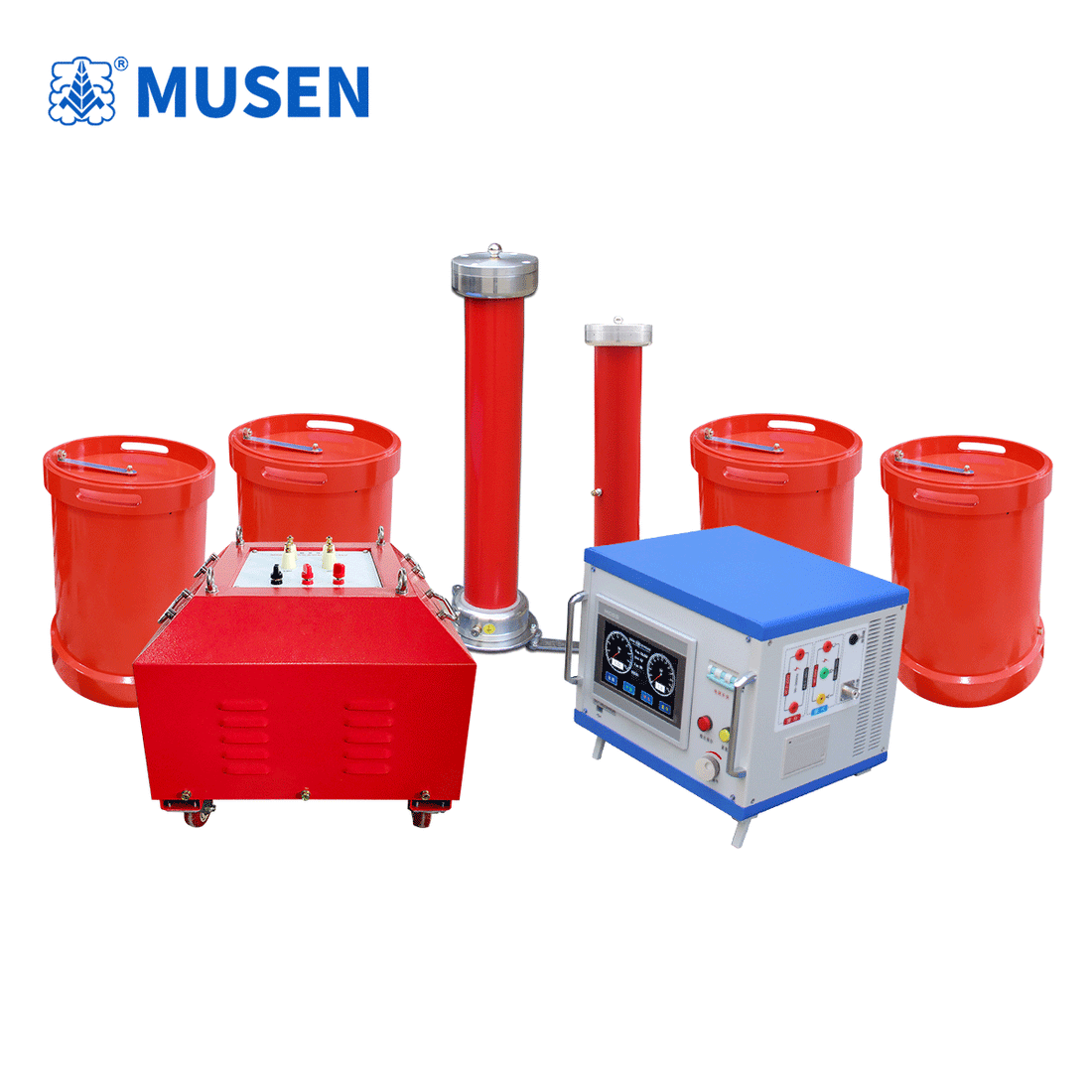

Gas-Insulated Switchgear (GIS) and large power transformers require precise AC dielectric verification before commercial operation. A Resonance Test System (widely known as a Variable-frequency series resonant test system), available at www.musenelectric.com, provides stable, low-distortion high voltage across varying frequencies to identify insulation defects without risking core saturation or transformer overheating.
Principles of GIS On-Site Insulation Testing
During GIS field testing, an AC resonant test system (or AC series resonant test system) delivers a sinusoidal test voltage of up to 500 kV or higher. Since the overall assembly acts as a capacitive load, a multi-component series resonant test setup balances the circuit reactance, maintaining total harmonic distortion (THD) below 0.3% in accordance with IEC 62271-203 standards.
Core Applications Across Substation Apparatus
The flexible, modular architecture of a resonant testing system accommodates various equipment types across municipal and industrial power grids:
GIS & SF6 Apparatus: High-voltage withstand and partial discharge diagnostic setup (IEC 62271-203).
Power Transformers: Full-voltage insulation integrity testing (IEC 60076-3).
High-Voltage XLPE Lines: Commuting tests via a cable resonant testing system or cable AC withstand voltage testing apparatus (IEC 60840).
Rotating Machines: High-voltage stator insulation tests (IEEE 95).
Busbars & Bushings: Factory and field overvoltage verification (IEC 60137).
On-Site Technical Comparison
| Testing Criteria | Variable Frequency Resonance System | Heavy Industrial Test Transformer |
|---|---|---|
| Mobility & Logistics | 1/10 to 1/30 mass; easily divided into modular reactor units | Requires specialized cranes and heavy flatbed transport |
| Flashover Protection | Detunes instantly; arc extinguishes in ≤ 1 μs | Sustained fault current causes localized surface burning |
| Power Source Flexibility | Operates on standard 220V / 380V auxiliary supply | Demands dedicated high-capacity power lines or generators |
| Harmonic Distortion | THD < 0.3% (meets IEC low-harmonic standards) | THD typically ranges between 3.0% and 5.0% |
Enhanced Reliability and Partial Discharge Diagnostics
Utilizing a Series resonant test system prevents voltage harmonics from interfering with sensitive diagnostic instruments. When integrated with Ultra-High Frequency (UHF) or Acoustic Emission (AE) sensors under IEC 60270, the low noise floor allows engineers to identify micro-voids, free-floating metallic particles, and surface tracking inside SF6 gas compartments.
Frequently Asked Questions
Q: Why is low total harmonic distortion (THD < 0.3%) important for GIS testing?
A: High-frequency voltage harmonics distort stress distribution along solid insulators and trigger false partial discharge readings during diagnostic procedures.
Q: Can reactor modules be combined for higher current demands?
A: Yes, reactors can be placed in parallel to double or quadruple current capability, or in series to double output voltage levels.
