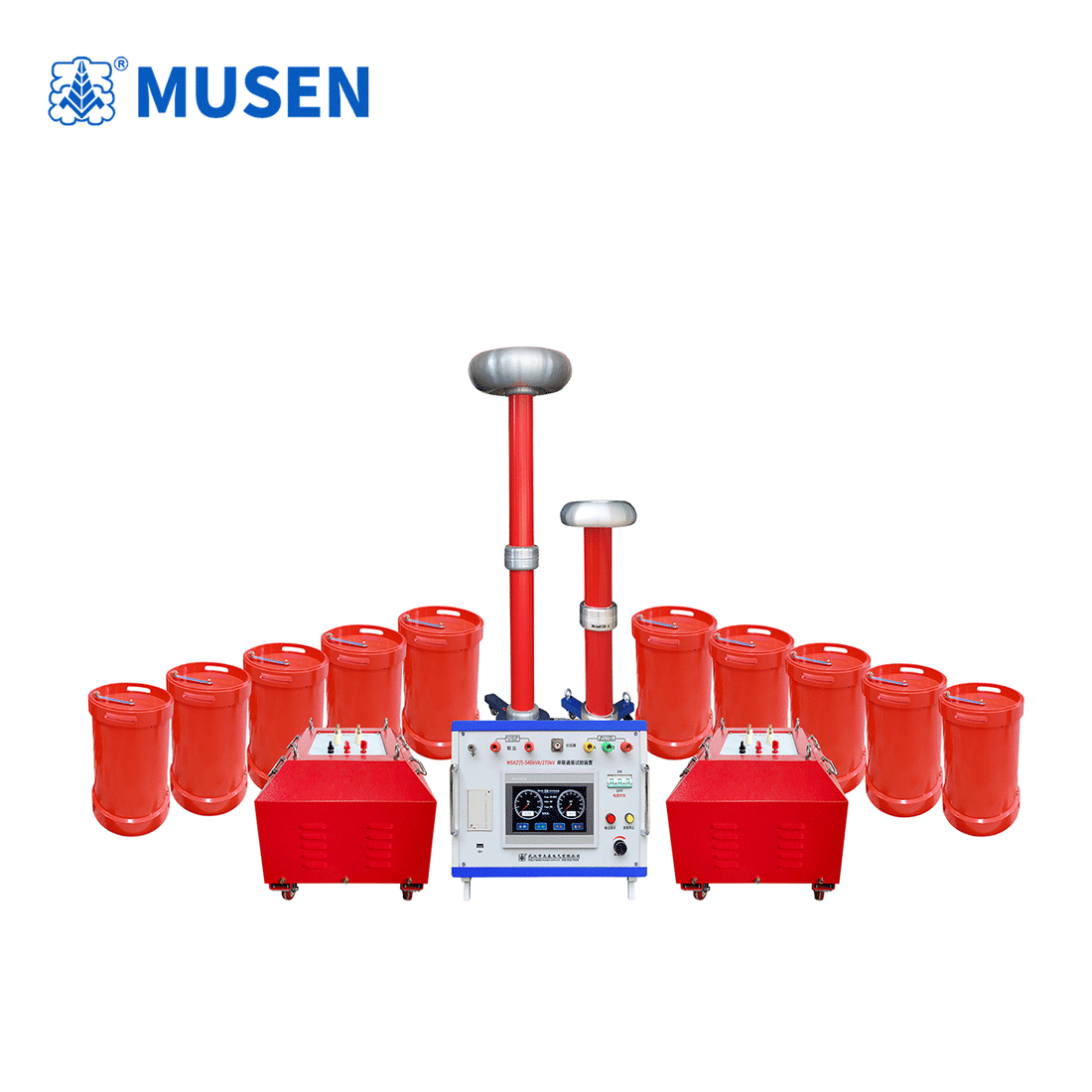

AC Insulation Testing for Large Rotating Machinery Using Resonance Systems
Large hydro and turbo generators feature substantial stator winding capacitance that requires high AC power during dielectric verification. A high-efficiency Resonance Test System (or Variable-frequency series resonant test systemengineered by www.musenelectric.com provides dynamic tuning to meet IEEE 95 and IEC 60034-1 standards while minimizing power draw from the local grid.
Mechanical and Electrical Advantages in Power Plants
Maneuvering heavy equipment in power plant environments is challenging. A portable series resonant test device features a total volume and mass that are only one-tenth to one-thirtieth of those of conventional test transformers. Furthermore, an AC resonant test system—or AC series resonant test system—operates on low-voltage 220V or 380V auxiliary power supplies, thereby avoiding complex power supply logistics.
Key Test Applications Across High-Voltage Infrastructure
While optimized for large rotating machines, this multi-purpose Resonant test system handles electrical commissioning across power networks:
- Hydro and Turbo Generators: Stator insulation AC withstand testing per IEEE 95.
- HV Cable Circuits: Verified using a Cable resonant test system or cable AC withstand voltage test set under IEC 60840.
- Power Transformers: Induced and applied voltage withstand tests under IEC 60076-3.
- GIS & Switchgear Units: Field acceptance testing per IEC 62271-203.
- Substation Components: Instrument transformers, busbars, and bushings (IEC 60137).
Safety and Fault Protection Benchmarks
| Protection Parameter | System Performance Specification | Operational Benefit |
|---|---|---|
| Flashover Response Speed | ≤ 1 microsecond execution | Prevents core iron burning during stator slot breakdown |
| Waveform Distortion | THD < 0.3% | Eliminates harmonic heating in stator insulation layers |
| Input Power Draw | Active power only (1/Q kVA) | Enables testing via standard station service panels |
| Protection Coverage | Overvoltage, Overcurrent, Thermal, Zero-Start | Ensures full operator safety and asset protection |
Preventing Core Damage During Insulation Breakdown
During traditional power-frequency withstand tests, an insulation breakdown can cause high short-circuit currents that damage generator core laminations. A Resonant test systemprevents this outcome: the instant dielectric breakdown occurs, the circuit detunes and the voltage drops immediately, stopping arcing in under 1 microsecond.
Frequently Asked Questions
Q: What output frequency range is typically used for generator insulation tests?
A: Generator tests are typically conducted between 45 Hz and 65 Hz to match near-power-frequency conditions while maintaining resonant efficiency.
Q: Can this equipment test both medium-voltage and high-voltage motors?
A: Yes, adjusting the modular reactor combinations enables testing across a wide range of motor voltage ratings from 3.3 kV up to 24 kV.
