Gas Trace Moisture Analyzer | Testing Precautions?

Gas Trace Moisture Analyzer/Cold Mirror Method SF6 Gas Dew Point Meter - Testing Precautions and Features?

The following is a summary of the features and testing precautions for the cold mirror method SF6 gas dew point meter.

Features and Testing Precautions for the Cold Mirror Method SF6 Gas Dew Point Meter

I. Main Features

1. Reference Method, Extremely High Accuracy: The cold mirror method is a direct and absolute measurement method. It determines the dew point by directly detecting the temperature at which condensation (or frosting) occurs on the mirror surface. Internationally recognized as a reference method, the measurement results are accurate and reliable, and it is commonly used for laboratory calibration or high-requirement on-site verification.

2. Direct Measurement, Stable Performance: Unaffected by changes in gas type, composition, or sensor aging, it exhibits excellent long-term stability and no drift issues.

3. Mirror Surface Condition Monitoring: Integrating an advanced photoelectric detection system, it can accurately determine the instant of condensation on the mirror surface, ensuring the accuracy of the measurement point.

4. Wide Measurement Range: Particularly suitable for measuring low dew point applications (e.g., below -60℃), effectively assessing the dryness and insulation performance of SF6 gas and its internal equipment.

II. Test Precautions

1. **Gas Path Cleanliness and Dryness:** This is crucial for accurate measurements. High-purity, dry sampling tubing must be used. Before connection, the tubing and instrument chamber must be thoroughly purged with the gas to be measured to remove moisture and contaminants, preventing measurement interference.

2. **Strict Gas Flow Control:** Excessive or insufficient flow will affect the thermal equilibrium of the mirror, leading to dew point measurement errors. The standard flow rate recommended in the instrument manual must be strictly followed.

3. **Patiently Waiting for Thermal Equilibrium:** During measurement, especially at low dew points, the cooling rate should not be too rapid. Patience is required to allow the mirror and gas temperatures to reach full equilibrium to ensure accurate condensation detection.

4. **Mirror Cleaning and Maintenance:** Mirror cleanliness is essential for the normal operation of the instrument. The mirror must be cleaned regularly and gently according to the procedure to avoid contamination from oil, dust, etc., which could affect photoelectric detection. After cleaning, ensure it is completely dry.

5. **Environment and Safety:** Tests should be conducted in a windless, clean environment. When operating SF6 equipment, ensure proper ventilation and personal protective equipment to prevent asphyxiation, and recover exhaust gases.

Correct use of this instrument is crucial for accurately assessing the moisture content of SF6 gas and ensuring the safety of high-voltage electrical equipment.

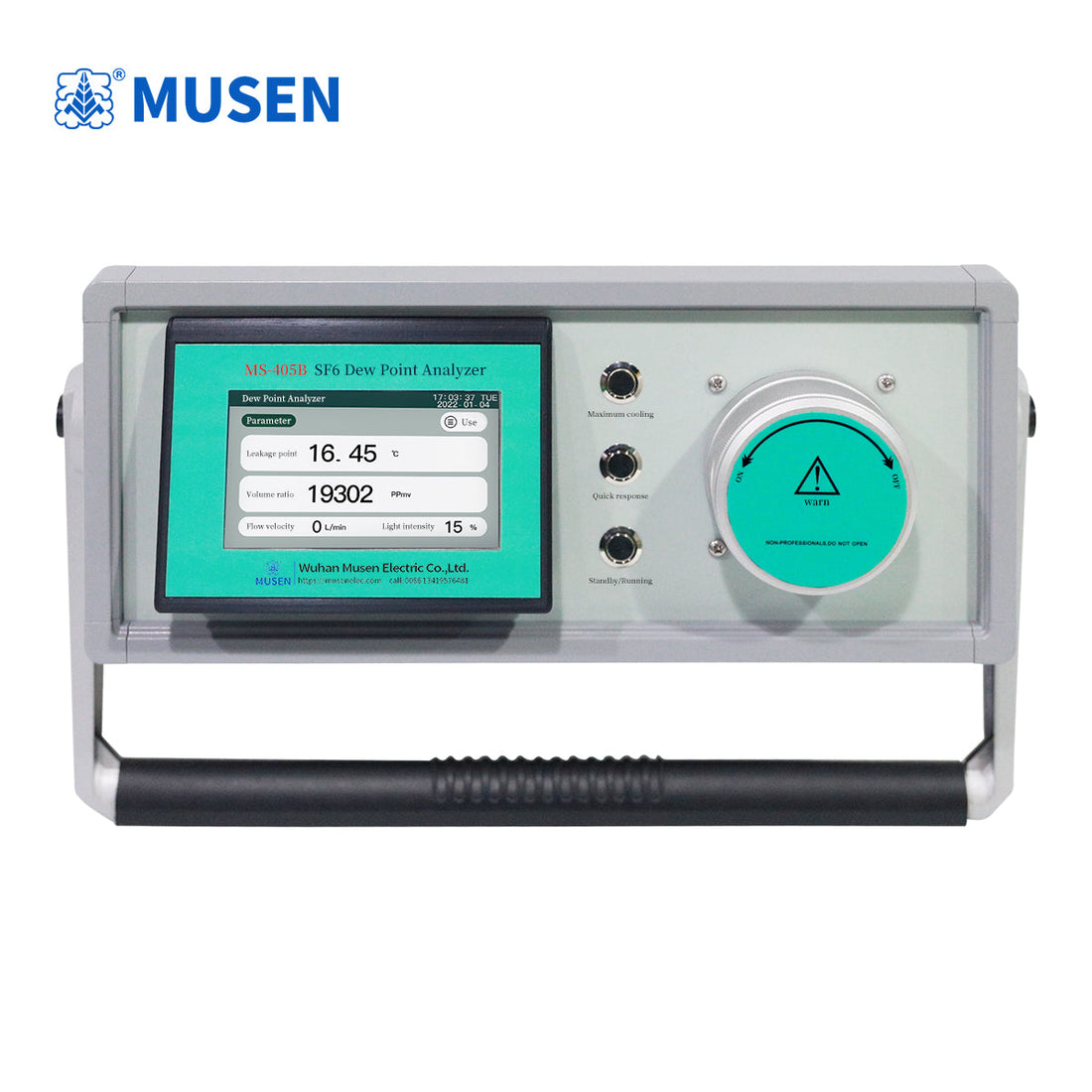

The MS-405BS SF6 Gas Dew Point Meter/SF₆ Dew Point Analyzer is a portable precision dew point meter manufactured with advanced technology. It accurately measures the dew point temperature of gases. The perfect combination of a high-quality dew point sensor and intelligent electronic control technology enables its successful application in accurately measuring dew points under various environmental conditions.

Dew point measurement is based on the principle of a cold mirror. Through semiconductor cold stack cooling, water vapor in the measured gas condenses into water or frost on the mirror surface. When the two-phase equilibrium of water in the gas is reached, the temperature of the mirror surface at this point is the dew point or frost point of the gas.

Compared to other types of dew point meters, the cold mirror dew point meter provides more accurate dew point temperature measurements and also features good measurement repeatability, stable and reliable measurement results, and ease of operation.

Portable cold mirror SF₆ gas dew point meters are standard instruments for humidity measurement in fields such as power, gas, meteorology, electronics, petroleum, chemical, and metrology, and are ideal for establishing humidity standard devices.
