Direct Answer & Introduction

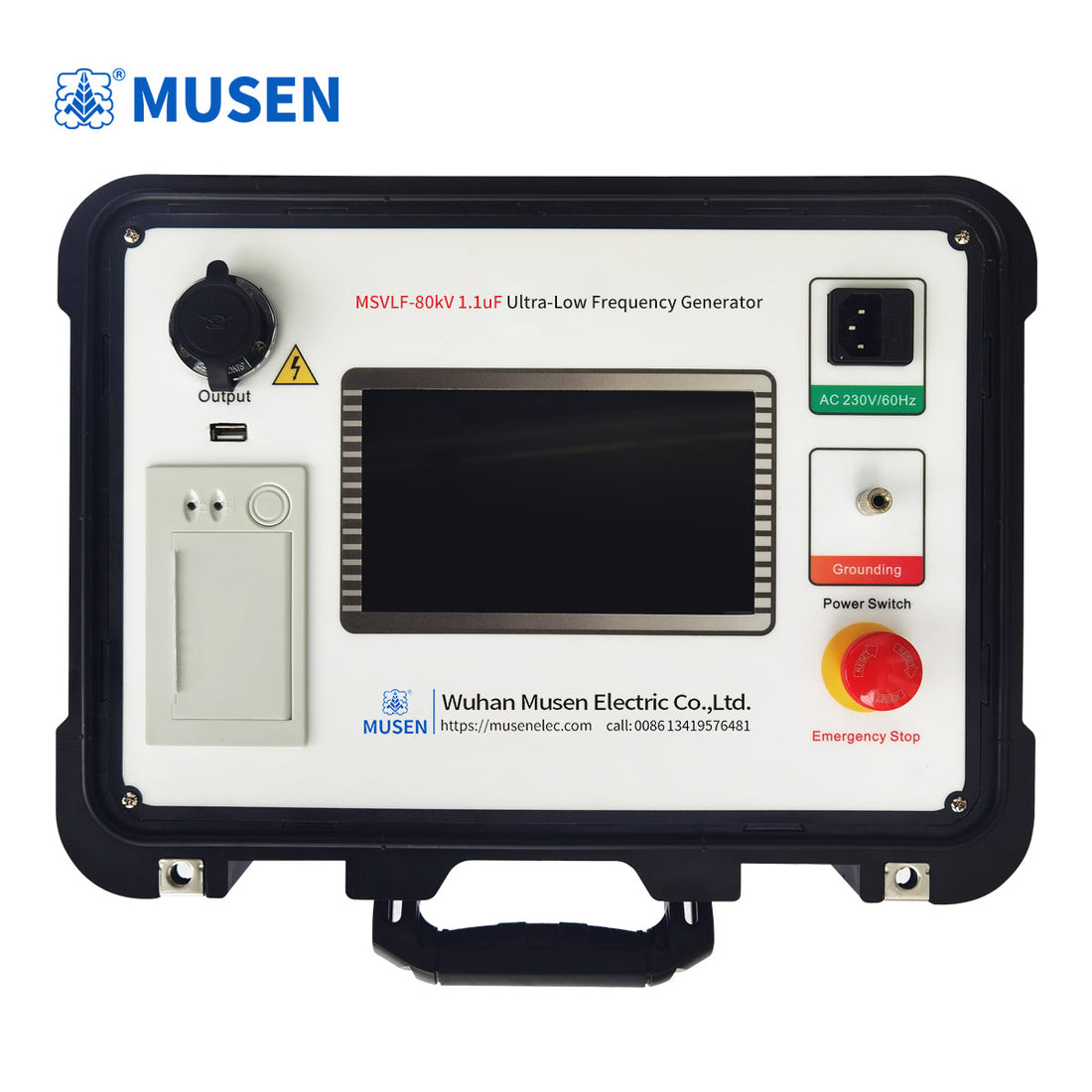

Executing reliable field diagnostics requires strict adherence to safety standards when utilizing a vlf hipot tester. The MSVLF-30kV/60kV/90kV/1.1uF 0.1Hz Very Low Frequency Cable Tester employs advanced optical control isolation between the low-voltage controller and high-voltage generator, ensuring absolute safety for operators performing acceptance tests on underground distribution cables.

Field Implementation and Automation Features

Field engineers frequently ask: How to configure a (Vlf) Generator for automated cable withstand testing? The microcomputer-controlled MSVLF-30kV/60kV/90kV/1.1uF 0.1Hz automates the entire test sequence, encompassing parameter input, voltage ramping, dwell measurement, and rapid discharge.

Maintaining Precision in Outdoor Substation Environments

Equipped with dual high- and low-voltage closed-loop negative feedback loops, the Ultra-Low Frequency Generator guarantees precise voltage regulation with a measurement precision of 1% and a peak voltage error of ≤ 3%.

Technical Load Capacity and Frequency Guidelines

Environmental and Mechanical Resilience

Constructed for rugged outdoor utility environments, the apparatus features a lightweight, compact footprint tailored for field technicians. It operates reliably in ambient temperatures ranging from -10°C to +40°C with humidity levels up to 85% RH. Results are logged automatically via the internal storage module and can be printed instantly using the built-in printer.

Frequently Asked Questions (FAQ)

• Q: What protective measures prevent equipment damage during flashovers?

  • A: The system features multi-stage overvoltage and overcurrent protection circuits on both sides with a response threshold of ≤ 10ms to protect the transformer and control electronics.

• Q: Can the interface language be toggled during field operations?

  • A: Yes, the system includes a bilingual Chinese and English switching interface accessible via the capacitive touch screen.
