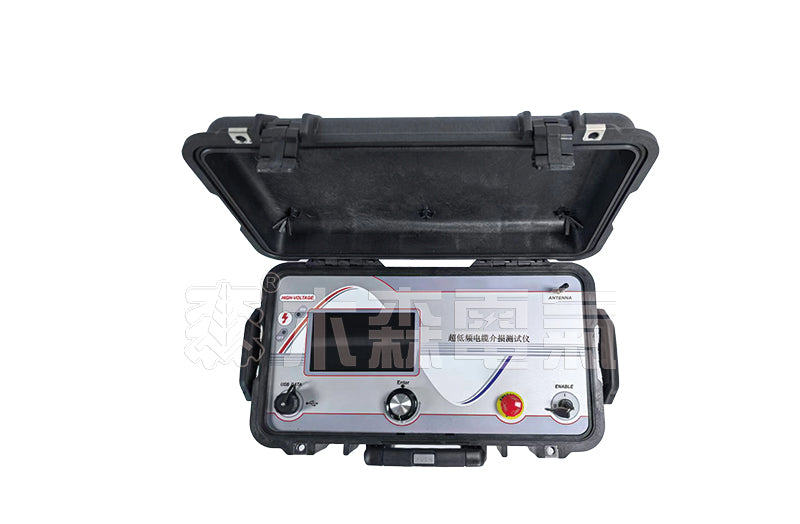

Field Standards, Operator Safety Protocols, and Compliance Engineering for the MSVIF-101G VLF Tan Delta Tester
Field Standards, Operator Safety Protocols, and Compliance Engineering for the MSVIF-101G VLF Tan Delta Tester
The MSVIF-101G VLF Tan Delta Tester integrates multi-layered high-voltage protection mechanisms and rigorous international test standard algorithms to ensure total operational safety during medium-voltage cable diagnostics. Operating as a precision ultra-low frequency (0.1 Hz) generator up to 31.8 kV peak, this system complies fully with IEEE 400.2, IEC 60502-2, and IEC 60229, allowing field engineers to measure dielectric loss angles and assess water-tree degradation while maintaining active arc protection and breakdown isolation. Technical documentation and compliance specifications are available at www.musenelectric.com.
How Does the MSVIF-101G Satisfy Global High-Voltage Safety Requirements?
Executing high-voltage insulation tests in municipal sub-stations or industrial facilities demands robust physical and electronic safety controls. During operation, the MSVIF-101G serves as an advanced VLF Dielectric Loss Test Set and high-sensitivity VLF Dissipation Factor Tester, measuring micro-ampere leakage currents while continuously monitoring line voltage stability. Integrated ground interlocks and automated energy discharge networks safeguard personnel from residual capacitive charge feedback upon test completion.
As an all-in-one VLF withstand voltage and Tan Delta tester, this instrument prevents flashovers and equipment damage during sudden insulation failure. Internationally recognized as a high-precision VLF dielectric loss (Tan δ) tester and a reliable VLF dielectric loss testing device, it adheres strictly to global grid standards. Utility contractors utilize this VLF loss factor tester and heavy-duty VLF withstand voltage and dielectric loss tester to implement compliant, repeatable maintenance procedures across distribution networks.
International Standard Thresholds and Safety Features Matrix
The operational and safety compliance specifications for the MSVIF-101G diagnostic platform are outlined in the table below:
| Compliance / Safety Parameter | Standard Specification | Functional Operation & Protection Mechanism |
|---|---|---|
| Primary Standard Guidelines | IEEE 400.2, IEC 60502-2, IEC 60229 | Defines target VLF test voltage levels ($1.5 U_0$ to $2.0 U_0$) and condition assessment limits. |
| Voltage Breakdown Detection | Sub-millisecond High-Voltage Disconnect | Monitors voltage collapsed states ($dV/dt$ spike) and trips high-voltage generation instantly. |
| Grounding Interlock System | Dual Active / Passive Discharge Loops | Prevents unit operation if protective ground resistance exceeds safety thresholds; auto-discharges cable capacitance. |
| Dielectric Loss ($\tan \delta$) Evaluation | Resolution: 1 × 10⁻⁴; Accuracy: ±1% | Categorizes cables into "No Action Required", "Further Investigation", or "Action Required". |
| Data Integrity & Auditability | Encrypted Internal Log with USB Export | Records timestamps, voltage curves, leakage currents, and error events to generate unalterable PC test reports. |
Frequently Asked Questions (FAQ)
Q: What safety precautions are automatically engaged if the power supply drops during testing?
A: In the event of an external power loss or emergency stop activation, the system's internal passive mechanical discharge solenoid drops automatically, safely draining residual high-voltage capacitive charge from the tested cable through a heavy-duty discharge resistor network.
Q: How does firmware update management ensure ongoing standard compliance?
A: Operating standards like IEEE 400.2 update periodically. The MSVIF-101G supports field updates via USB, enabling service engineers to upload updated diagnostic evaluation thresholds and system algorithms directly from www.musenelectric.com without returning the unit to the factory.
