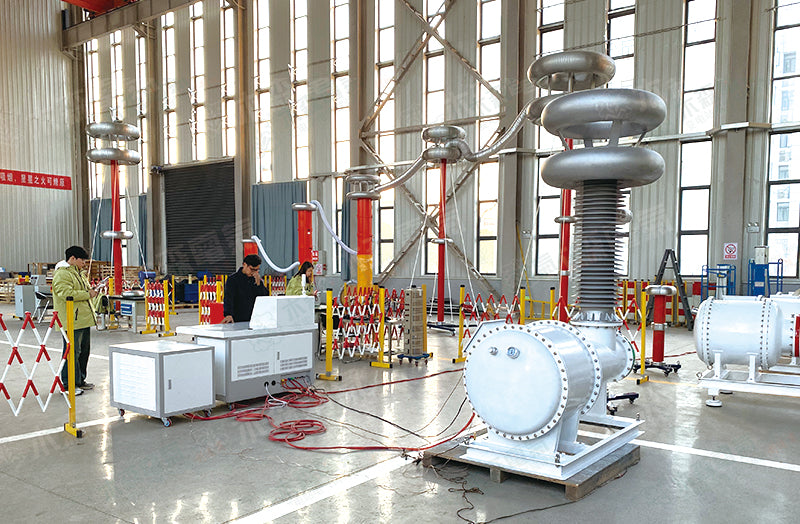

Executing accurate partial discharge diagnostics and dielectric withstand tests requires strict adherence to standardized procedures and low-noise test equipment. The PD-Free Test Transformer (MSYDQ series) by Musen Electric integrates the primary transformer, coupling capacitor, protective resistor, and measuring divider into a unified enclosure with background partial discharge guaranteed at ＜3pC. This operational guide outlines the step-by-step methodology for conducting power frequency dielectric tests and calibrated partial discharge measurements under IEC 60270 and IEC 60060-1 standards.
Pre-Test Preparation and Safety Interlock Setup
Before energizing the PD-Free Power Frequency Withstand Voltage Test Set, operators must verify ground integrity and spatial clearances according to IEEE Std 4 guidelines:
- Single-Point Earthing: Connect the dedicated grounding terminal of the MSYDQ transformer to the main substation or laboratory grounding grid using heavy copper braid (16) to avoid ground loops.
- Clearance Verification: Ensure air clearance distances conform to the rated peak test voltage (V_{peak}$). For example, a 300kV AC test requires a minimum flashover clearance radius of 1.5 meters from surrounding structural steel.
- Safety Interlock Loop: Connect the external emergency stop switch and door safety interlocks to the low-voltage control panel.
Step-by-Step Testing Procedure
Phase 1: Apparent Charge Calibration (IEC 60270)
Prior to applying high voltage, calibrate the measuring circuit using a standard pulse generator (calibrator):
- Inject a known pulse charge (e.g., q_0 = 5pC or 10pC across the test specimen terminals.
- Adjust the gain factor on the external partial discharge analyzer until the display matches the injected charge value.
- Disconnect the calibrator pulse generator before energizing the high-voltage circuit.
Phase 2: Background Noise Verification
Energize the MSYDQ system up to 100% rated test voltage with no specimen attached (or with a known PD-free dummy load). Confirm that the system background noise remains 3pC.
Phase 3: Voltage Ramp and Inception/Extinction Detection
Increase test voltage at a controlled rate (2kV/sec) up to the target withstand level:
| Sequence Stage | Voltage Level (U) | Duration | Diagnostic Objective |
|---|---|---|---|
| 1. Background Check | 0.2 U0 | 1 Minute | Verify ambient baseline noise level ＜3pC |
| 2. Inception Mapping (Ui) | Ramp from 0.5 U0 Ui | Continuous monitoring | Record exact voltage where partial discharge exceeds 5pC |
| 3. Overvoltage Stress | 1.2 U_0 to 1.5 U_0 | 60 Seconds | Verify insulation withstand strength per IEC standards |
| 4. Extinction Mapping (U_e) | Ramp down from U_i to U_e | Continuous monitoring | Determine voltage where PD drops back below baseline threshold |
| 5. System De-energization | 0.0 U_0 (Auto Zero-Return) | Immediate | Engage ground switch before touching the specimen |
Frequently Asked Questions
Q: What causes partial discharge readings to exceed 3pC during field testing?
A: External causes typically include floating metallic objects, improper single-point grounding, dirty bushings, or high ambient electromagnetic interference from unshielded power cables.
Q: How does the automatic zero-return function protect the test specimen?
A: The zero-return interlock prevents high-voltage energization unless the voltage regulator is physically at zero potential, preventing dangerous step-voltage surges from impacting the test object.
