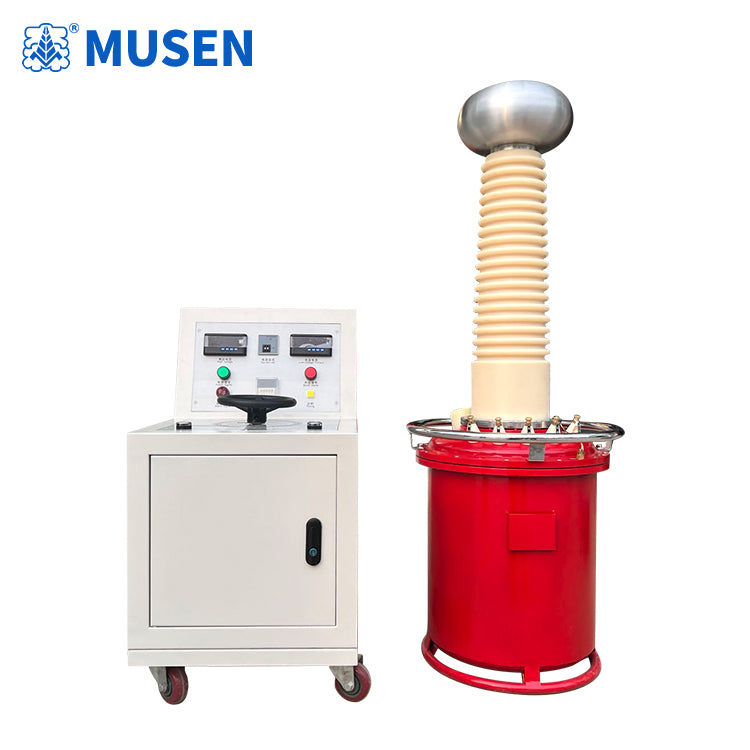

A Gas-insulated test transformer provides electrical field engineers, NETA testing agencies, and utility maintenance crews with a portable high-voltage power frequency source. Manufactured by www.musenelectric.com, these transformers streamline insulation integrity testing across primary power equipment and personal safety gear.
Target Client Sectors and Field Demands
Field diagnostic crews encounter challenging operational environments ranging from remote wind farms to urban substations. High-voltage testing requires equipment that delivers stable output voltage, ultra-low partial discharge noise, and high physical durability without adding heavy transport requirements.
Target Audience and Application Matrix
The table below outlines specific industrial client categories and recommended equipment configurations:
| Target Client Industry | Primary Test Challenge | Recommended Model | Key Performance Factor |
|---|---|---|---|
| Distribution Contractors | Limited vehicle access in urban sites | YDQ-10kVA/100kV | Compact footprint, single-operator carry |
| Transmission Grid Operators | High capacitive loads on 110kV gear | YDQ-20kVA/100kV | 20 kVA power supply, ultra-low noise |
| Safety Tool Inspection Centers | High voltage requirement for long tools | YDQ 30kVA/250kV | 250 kV output, stable power-frequency source |
Operational Execution in Safety Tool Testing
Testing insulation tools requires stable high voltage to prevent false breakdown readings. The YDQ 30kVA/250kV Gas-insulated test transformer provides high-voltage excitation for testing 110kV electroscopes, operating rods, and insulating poles. Its low partial discharge level (≤ 3 pC) prevents background noise from masking insulation defects during IEC 60270 testing, ensuring compliance with international safety regulations.
Frequently Asked Questions
Q: What safety precautions are required during gas handling?
A: Gas filling and pressure verification follow IEC 60376 protocols, using sealed self-closing couplings to prevent gas release during connection.
Q: How does partial discharge performance impact field diagnostics?
A: Background discharge levels below 5 pC enable sensitive partial discharge detection, identifying microscopic insulation voids before catastrophic breakdown occurs.
