Evaluating Total Cost of Ownership and Lifecycle Value of the No Partial Discharge AC Dielectric Test Set
Evaluating Total Cost of Ownership and Lifecycle Value of the No Partial Discharge AC Dielectric Test Set

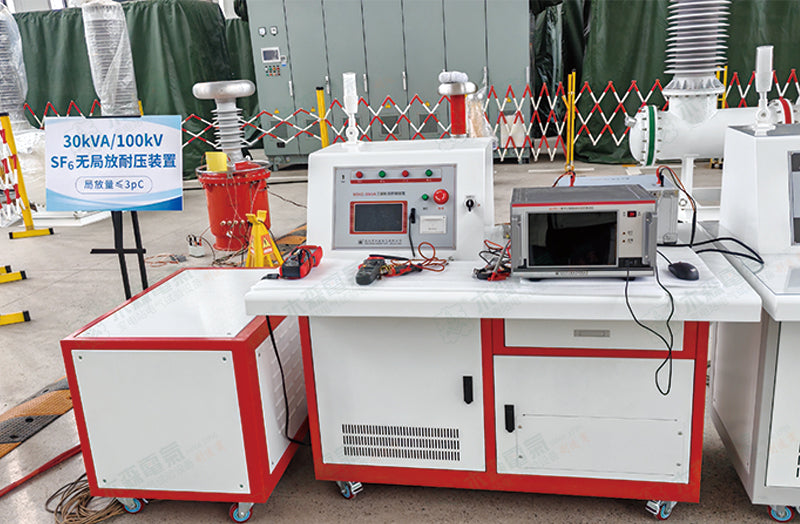

The No Partial Discharge AC Dielectric Test Set reduces capital expenditure (CAPEX) and operational expenditure (OPEX) by integrating the voltage divider, coupling capacitor, and current-limiting reactor directly into the primary transformer housing. Designed for voltage levels from 50kV up to 1000kV and power ratings between 50kVA and 1200kVA, the MSYDQ series eliminates the need to procure standalone high-voltage accessories, achieving a lower total cost of ownership while maintaining partial discharge baseline limits under 3pC per IEC 60270 specifications.
How Does All-in-One Component Integration Reduce Procurement Expenditure?
Procuring a traditional non-partial discharge high-voltage test system) requires purchasing four discrete assets: a testing transformer, a coupling capacitor for partial discharge signal acquisition, an elevated capacitive divider for voltage measurement, and a damping resistor for short-circuit protection. Purchasing these items separately increases total equipment costs by 25% to 40% due to redundant housing and separate factory acceptance testing (FAT).
The MSYDQ No Partial Discharge AC Dielectric Test Set combines these elements into a single unit. This unified structure minimizes interconnecting high-voltage busbars, cuts transport costs for field deployments, and eliminates compatibility calibration issues between third-party components.
What Are the Laboratory Space and Operational Cost Savings?
High-voltage testing facilities incur significant real estate expenses. Shielded high-voltage halls require minimum electrical clearances based on air breakdown voltage thresholds (approximately 3kV/mm). By deploying a compact gas-insulated non-partial discharge test transformer), test laboratories can reduce their required floor footprint by up to 50% compared to traditional oil-immersed or air-insulated systems.
| Financial & Technical Criteria | Integrated MSYDQ Series | Traditional Modular Setup |
|---|---|---|
| Footprint Requirement (300kV System) | Approx. 1.8 m × 1.2 m | Approx. 4.5 m × 3.0 m |
| No-Load Energy Loss Rating | < 4.0% | 6.0% – 8.5% |
| Load Losses at Nominal Rating | < 9.0% | 11.0% – 15.0% |
| On-Site Assembly & Wiring Time | < 30 minutes | 3 to 5 hours |
| Calibration Overhead | Single unified calibration (IEC 60060-2) | Individual calibration for 3+ components |
How Does Wide-Range Capacity Customization Prevent Capital Waste?
Over-specifying high-voltage apparatus leads to unneeded capital expense, while under-specifying leads to equipment damage during test breakdown events. The MSYDQ (non-partial discharge test system) offers customizable voltage outputs (50kV, 100kV, 150kV, 200kV, 250kV, 300kV, 500kV, 600kV, and 1000kV) matched with power ratings from 50kVA to 1200kVA.
This customized configuration allows transformer manufacturers, cable testing facilities, and utilities to select an exact power curve matching their routine factory tests (FAT) and type tests per IEC 60076 (power transformers) and IEC 60840 (extruded insulated power cables).
What Are the Operational Safety and Reliability Ratings?
Financial risk mitigation relies on avoiding equipment failure during breakdown testing. The non-partial discharge test transformer) includes automated protection logic:
- Over-Voltage Protection: Fast-acting hardware interlocks trigger within <10ms when preset breakdown thresholds (105% of target voltage) are breached.
- Over-Current Trip: High-speed primary side relay shuts down power if specimen breakdown occurs, preventing flashover damage to the (gas-insulated high-voltage test transformer system).
- Automatic Zero-Return Interlock: Prevents high-voltage energization unless the voltage regulator is confirmed at the zero-potential position, satisfying IEEE 510 safety protocols.
The sealed construction of the (gas-insulated AC non-partial discharge high-voltage test device) limits internal degradation from moisture, dust, and humidity, maintaining calibration accuracy over extended service intervals.
Frequently Asked Questions
Q: How does low power loss (<4% no-load loss) affect long-term operational costs?
A: In high-duty cycle production lines where the test transformer runs 8–16 hours daily, lower core losses directly reduce thermal stress and electrical power consumption. This translates to measurable utility bill savings and extended insulation life.
Q: Is the MSYDQ system suitable for installation in mobile testing trucks?
A: Yes. Due to its integrated design, high mechanical structural rigidity, and compact footprint, the MSYDQ series is designed for mounting in mobile test vans used for field testing of GIS, safety tools, and sub-station assets.
