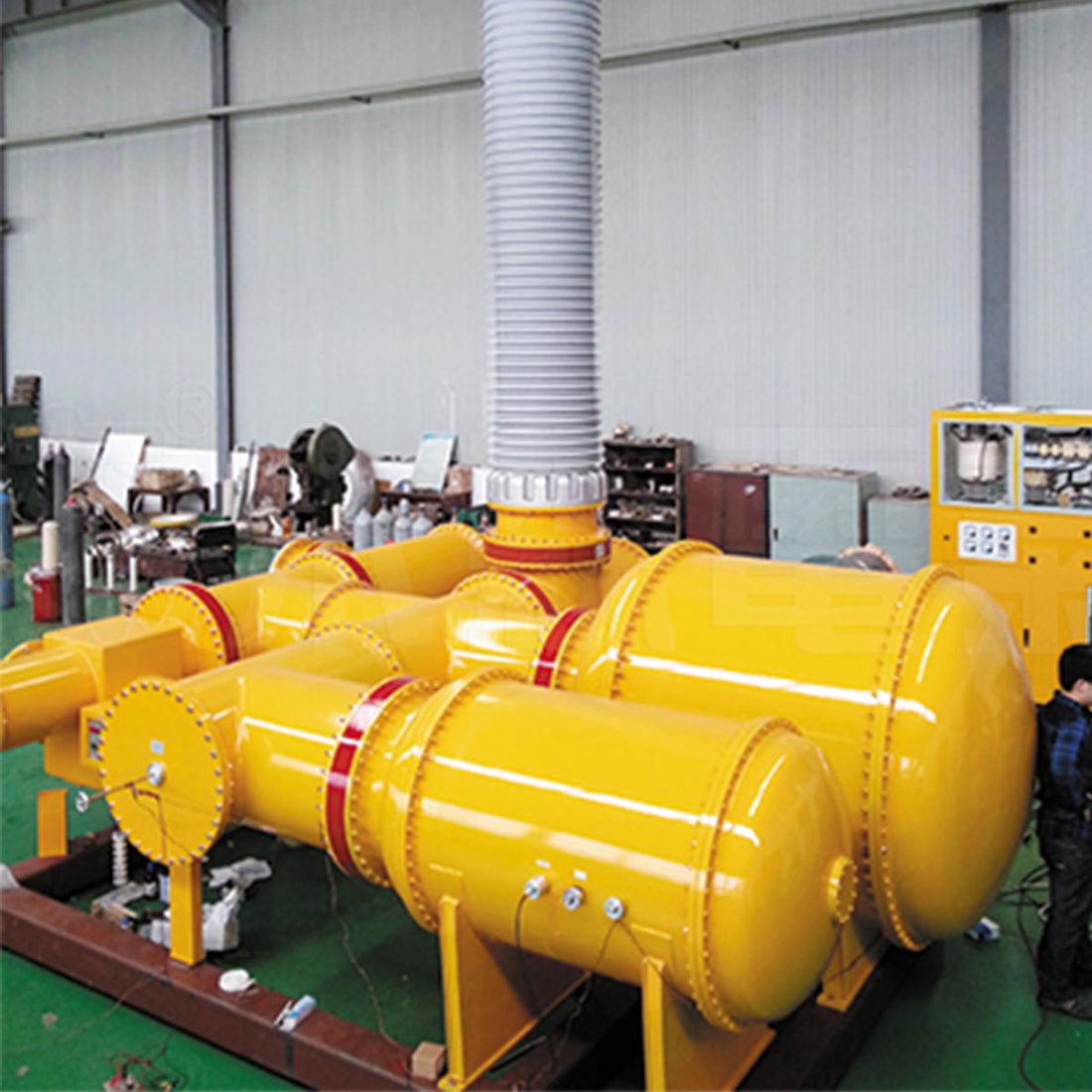

GIS Partial Discharge-Free Test Equipment utilizes compressed SF6 gas insulation and grounded metallic shielding to suppress external electromagnetic interference (EMI), achieving internal noise floors below 1–3 pC at full output voltage. Designed according to IEC 60060-1 and IEEE 4 high-voltage testing standards, these systems integrate specialized step-up transformers directly with gas-insulated switchgear to optimize dielectric test performance.

How Does SF6 Gas Shielding Eliminate Background Interference?

In conventional high-voltage test setups, air-insulated conductors generate micro-corona discharges along sharp edges, hardware connections, and surface irregularities once the localized electric field exceeds Paschen's breakdown threshold (E approx 30 kV/cm in air). Compressed sulfur hexafluoride (SF6) gas at operational pressures between 0.3 MPa and 0.5 MPa increases dielectric withstand strength by 2.5 to 3 times relative to atmospheric air.

Encapsulating the step-up transformer coils, coupling capacitors, and voltage dividers inside a single grounded steel or aluminum pressure vessel eliminates exposed high-voltage points. Because the exterior shell remains at zero ground potential ($0\text{ V}$), external electromagnetic fields cannot penetrate the enclosure, allowing sub-picocoulomb measurements without specialized Faraday cage facilities.

What Is the Operating Mechanism of the Dual-Mode Resonant Boosting Architecture?

Testing extended GIS busways and long GIL installations requires driving large capacitive loads (C_x). Applying power frequency voltage directly under high capacitance requires high reactive power input (Q_{var} = omega C_x U2).

Operational Feature	Power Frequency Step-Up Mode	Variable Frequency Resonant Mode
Frequency Range	Fixed 50 Hz / 60 Hz	Tunable 20 Hz – 300 Hz
Target Load Capacitance	Low capacitive objects (<2,000 pF)	High capacitive objects (5,000 pF to >100,000 pF)
Input Power Requirement	Full apparent power S = U cdot I	Active power only $P = S / Q (where Q ge 40)
Waveform Quality	Sinusoidal (THD < 3%)	Pure Sinusoidal (Resonant filtering THD < 1%)
Failure Flashover Energy	High fault current potential	Immediate resonance loss limits breakdown energy

How Do Technical Specifications Align Across EHV Voltage Ratings?

High-voltage testing requirements are determined by the operating line voltage and standardized impulse/AC withstand test levels established under IEC 62271-203.

System Designation	Rated Capacity / Voltage Output	Target Grid System Level	Factory / Field Acceptance Test Standard
GTU 800/800 System	800 kVA / 800 kV	550 kV Class GIS	680 kV / 740 kV Factory AC Withstand + PD
GTU 800/600 System	800 kVA / 600 kV	363 kV / 330 kV Class GIS	460 kV / 510 kV Factory AC Withstand + PD
GTU 800/400 System	800 kVA / 400 kV	252 kV / 220 kV Class GIS	360 kV / 460 kV Factory/Site Withstand + PD
GTU Component Tester	800 kVA / 250 kV	Sub-assembly & Component Rigs	IEC 60137 / IEC 61869 Component Standard
GTU Modular Vessel	600 kVA / 150 kV	Insulator & Disconnector Testing	Multi-Station Dielectric Screening

How Does Resonant Frequency Selection Protect Switchgear During Insulation Failure?

If an internal insulation flashover occurs during high-voltage testing, the resonant circuit formed by tuning inductor L and test object capacitance C_x instantly detunes. As capacitance drops during breakdown, system impedance shifts off resonance, causing output voltage to collapse within microseconds. This inherent self-limiting behavior prevents catastrophic arc erosion on silver-plated conductor contacts and internal epoxy surfaces.

Frequently Asked Questions

Q: What is the primary difference between power-frequency direct boost and variable-frequency series resonance?

A: Power-frequency direct boost uses a fixed 50/60 Hz step-up transformer suitable for low-capacitance test items. Variable-frequency series resonance tunes the power supply frequency (20–300 Hz) to match circuit resonance, significantly reducing required input power when testing high-capacitance long busbar systems.



Q: How does the GTU system ensure safety for operator personnel?

A: All high-voltage internal components are completely encapsulated inside an earthed metallic vessel at ground potential (0 V), eliminating exposed live conductors and reducing electrical shock risks during field operation.



---
