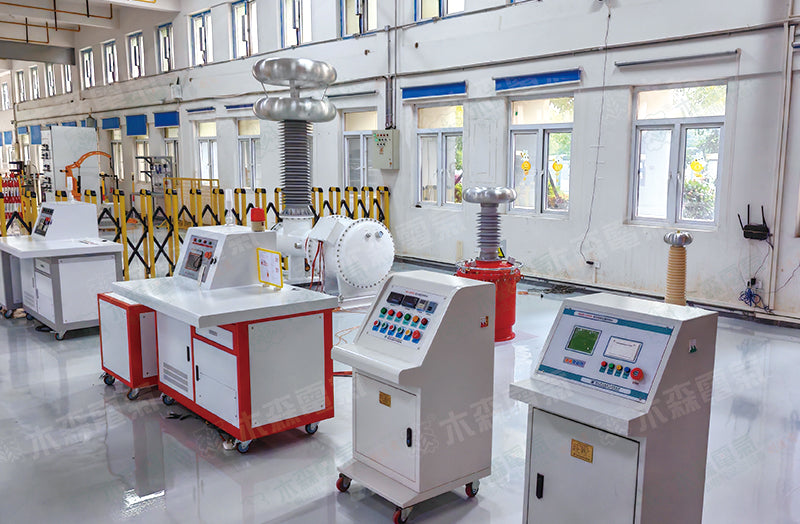

Engineering Parameters of the Gas-Type Partial Discharge-Free Test Transformer
Gas-Type Partial Discharge-Free Test Transformer, Pd Free High Voltage Testing System, No Partial Discharge AC Dielectric Test Set, Gas-Filled Partial Discharge-Free Test Transformer, Partial Discharge Free Testing System, Pd Free Test Transformer, Gas Insulated Hv Test-Transformer Systems, Gas Insulated Ac Discharge Free High Voltage Testing
Engineering analysis of the MSYDQ Gas-Type Partial Discharge-Free Test Transformer. Covers dielectric insulation mechanisms, ≤3pC background noise, and 30-300Hz frequency compatibility.
Dielectric Principles of the Gas-Type Partial Discharge-Free Test Transformer
A Gas-Type Partial Discharge-Free Test Transformer utilizes pressurized dielectric gas—typically Sulfur Hexafluoride (SF6) or specialized eco-friendly gas mixtures—to deliver stable high-voltage potential while restricting internal localized discharges to ≤3pC at full rated output. The MSYDQ series engineered by Musen Electric integrates all critical high-voltage nodes, including the voltage division ladder, coupling capacitance, and damping resistors, within a single sealed shell. This construction provides reliable execution of power-frequency and variable-frequency (30–300 Hz) dielectric testing across rated outputs ranging from 50kV to 1000kV.
How Is Internal Discharge suppressed in SF6 Gas-Insulated Transformers?
Partial discharges occur when localized electric field intensity (E) exceeds the dielectric breakdown threshold of the surrounding medium, leading to micro-arcing in voids or gas pockets. In conventional air or liquid systems, field enhancement at sharp electrode edges creates breakdown cascades detected via acoustic sensors or ultra-high frequency (UHF) couplers. The Gas-Filled Partial Discharge-Free Test Transformer suppresses these ionization cascades through three core engineering measures:
- Uniform Field Design: Computer-modeled toroidal shielding electrodes suppress stress concentration, maintaining electric field distribution below critical ionization limits.
- Gas Media Isolation: High-purity SF6 gas provides superior electron-attracting properties, quenching electron avalanches before partial discharge channels form.
- Shielded Internal Components: The coupling capacitor and capacitive divider are co-axially mounted inside the pressure vessel, eliminating high-voltage leads that generate external air corona.
What Are the Operational Features of the MSYDQ Series?
| Operational Attribute | Technical Value Range | Relevant International Standard |
|---|---|---|
| System Background Noise | ≤ 3 pC (Overall System) | IEC 60270 / IEEE 400 |
| Voltage Output Range | 50 kV to 1000 kV (50/100/150/200/300/500/1000kV) | IEC 60060-1 |
| System Power Rating | 50 kVA to 1200 kVA (Fully Customizable) | IEC 60076-3 |
| Frequency Operational Band | 30 Hz – 300 Hz (Variable) & 50/60 Hz (Grid) | IEC 60840 / IEC 62067 |
| Internal Protection Systems | Auto-Zero Return, Over-Current & Over-Voltage Tripping | IEEE C37.90 |
How Does the MSYDQ Architecture Support Mobile Diagnostic Vehicles?
On-site diagnostics for power transmission lines and mobile substations require testing tools that are light, durable, and insensitive to environmental dust or humidity. The compact footprint of the MSYDQ Pd Free High Voltage Testing System allows full mounting within specialized test vehicles. Field engineers can perform AC dielectric testing, acoustic emission (AE) monitoring, and electrical partial discharge detection on safety tools, GIS equipment, and insulated rods without setting up temporary outdoor high-voltage busbars.

Target Customers and Strategic Positioning
The MSYDQ system caters to electrical equipment manufacturers, university research institutes, national power grids, and third-party high-voltage calibration centers. By providing certified ≤3pC performance, it bridges the gap between laboratory accuracy and field-level durability.
Q: Why is a low partial discharge rating (<5pC) critical during dielectric testing?
A: High background discharge in test equipment masks micro-defects within the test object. Maintaining baseline discharge ≤3pC ensures that measured signals originate exclusively from the specimen under test, preventing false approvals or unnecessary rejections.
Q: What is the primary maintenance requirement for a Gas-Type Test Transformer?
A: Maintenance involves monitoring SF6 gas pressure via built-in density switches and verifying gas moisture content periodically in accordance with IEC 60376 guidelines.
