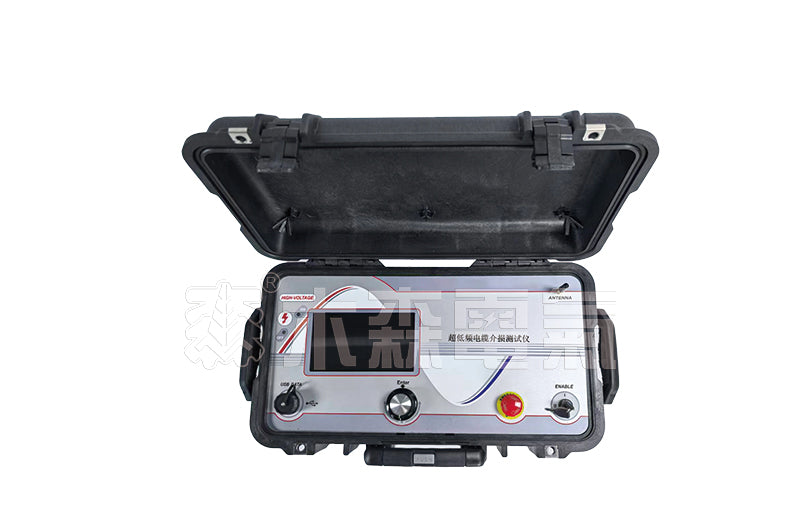

Economic Valuation and Return on Investment Analysis for the MSVIF-101G VLF Tan Delta Tester
Economic Valuation and Return on Investment Analysis for the MSVIF-101G VLF Tan Delta Tester
The total cost of ownership for the MSVIF-101G VLF Tan Delta Tester delivers substantial return on investment (ROI) by replacing bulky, power-intensive 50 Hz power-frequency resonant test sets with a compact 0.1 Hz diagnostic architecture. By combining combined high-voltage withstand testing, sheath fault location, and dielectric loss measurement into a single unit, this system reduces capital expenditure (CapEx) by up to 40% and field operational expenditure (OpEx) by over 65%. Detailed financial and diagnostic models are available at www.musenelectric.com.
What Drives the Total Cost of Ownership in Medium-Voltage Cable Diagnostics?
Traditional high-voltage cable withstand testing relied on heavy transformers or high-power AC resonant test systems. The reactive power required to test a capacitive cable load (C) at power frequency (f = 50Hz or 60Hz) is defined by the reactive power formula Q = 2pi f C V Operating at a Very Low Frequency (f = 0.1Hz) reduces power supply and equipment mass requirements by a factor of 500, directly minimizing logistics expenses and transportation footprint.
The MSVIF-101G functions as an integrated VLF dielectric loss test set and high-precision VLF dissipation factor tester, eliminating the need for separate diagnostic instruments. As a versatile VLF withstand voltage and Tan Delta tester, it consolidates multiple field procedures into a single mobilization cycle. Utility contractors worldwide select this system as a cost-effective and reliable VLF dielectric loss (Tan δ) testing solution to streamline asset management budgets. Deploying this multipurpose and durable VLF dissipation factor and withstand voltage tester optimizes predictive maintenance expenditures across municipal and industrial power grids.
CapEx, OpEx, and Logistics Comparison Table
The table below provides a quantitative comparison of capital, operational, and maintenance costs between traditional power-frequency resonant test sets and the MSVIF-101G system:
| Cost Vector | 50/60 Hz Power-Frequency Resonant Set | MSVIF-101G VLF Diagnostic System |
|---|---|---|
| Initial Equipment Procurement (CapEx) | High ($80,000 – $150,000 USD) | Optimized ($25,000 – $45,000 USD) |
| System Weight & Logistics | 300 kg – 1200 kg (Requires crane/truck) | Portable (< 50 kg total modular system) |
| On-Site Power Requirement | 15 kVA – 50 kVA Diesel Generator | Standard 1.5 kVA single-phase AC source |
| Field Operation Crew Size | 3 to 4 specialized technicians | 1 to 2 trained field engineers |
| Unplanned Outage Avoidance Value | Low (Destructive breakdown-only test) | High (Predictive tan δ trend analysis per IEEE 400.2) |
How Does Predictive Maintenance with the MSVIF-101G Prevent Unscheduled Outages?
Unscheduled downtime in medium-voltage distribution networks (11 kV to 33 kV) can cost industrial plants between $20,000 and $100,000 per hour in lost production. Traditional DC withstand testing risks accelerating space-charge entrapment in cross-linked polyethylene (XLPE) cable insulation, potentially inducing premature post-test breakdown. In contrast, the MSVIF-101G measures dissipation factor (tan delta) non-destructively at 0.5 U_0, $1.0 U_0, and 1.5 U_0. By categorizing cable circuits into "No Action Required", "Further Investigation", or "Action Required" according to IEEE 400.2 thresholds, asset managers can schedule targeted joint or elbow replacements during planned maintenance windows, avoiding emergency repairs.
Frequently Asked Questions (FAQ)
Q: What is the average payback period (ROI) for the MSVIF-101G system?
A: For utility contractors testing over 50 cable circuits per year, the payback period is typically under 8 months. Savings stem from reduced crew size, lower power generator rental fees, faster setup times, and the elimination of separate sheath testing equipment.
Q: Does VLF testing reduce the risk of further damaging aged XLPE insulation during testing?
A: Yes. Unlike DC stress, 0.1 Hz sinusoidal AC stress does not introduce space charge buildup. Furthermore, real-time tan δ tracking allows operators to terminate tests immediately if dielectric loss increases rapidly, preserving cable integrity before thermal runaway occurs.
