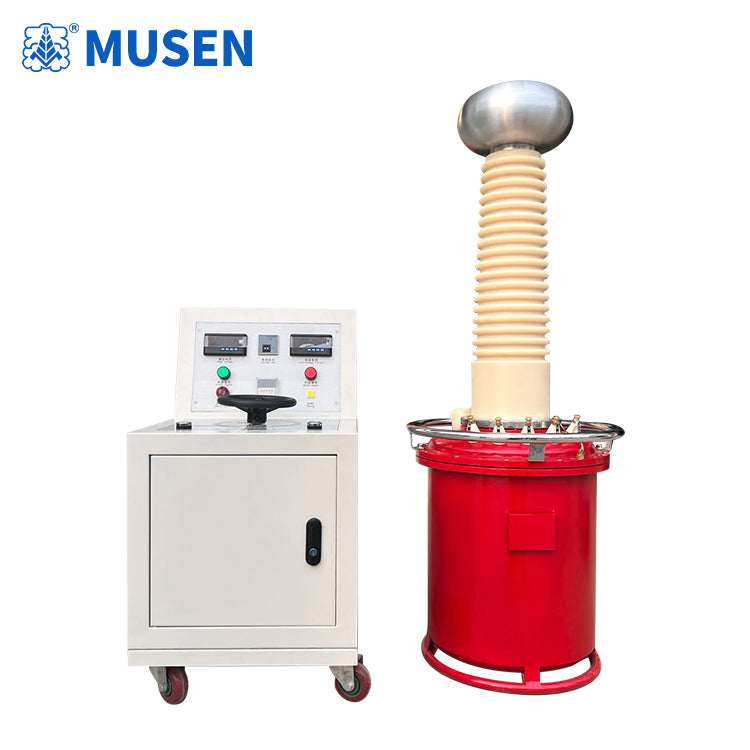

The YDQ-20kVA/100kV gas-insulated test transformer is a heavy-duty, ultra-lightweight power-frequency voltage step-up system tailored for insulation integrity verification on electrical equipment deployed in substations rated up to 110kV. Delivering 20kVA output capacity at 100kV AC, this system provides sufficient charging current for large capacitive loads such as current transformers, voltage transformers, potential transformers, and short cable lines according to IEC 60076-3 and IEEE C57.12.00 specifications.
Why Is Higher Capacity Required for 110kV Substation Field Diagnostics?
Testing 110kV primary assets requires higher capacitive charging currents ($I = 2\pi f C U$) during power-frequency AC withstand procedures. A standard 10kVA unit may experience thermal overload or voltage waveform distortion under high capacitive loading conditions. The YDQ-20kVA/100kV gas-insulated test transformer supplies a continuous 200mA output current, ensuring stable output voltage waveform distortion factor ($\le 3\%$) as mandated by IEC 60060-1.
|
Equipment Model |
Capacity |
Output Voltage |
Max Current |
Target Application Scope |
|---|---|---|---|---|
|
YDQ-10kVA/100kV |
10 kVA |
100 kV AC |
100 mA |
35kV Substation apparatus, distribution transformers |
|
YDQ-20kVA/100kV |
20 kVA |
100 kV AC |
200 mA |
110kV Substation primary gear, high-capacitance CT/PT/GIS |
|
YDQ-30kVA/250kV |
30 kVA |
250 kV AC |
120 mA |
110kV Hot-line tools, insulated rods, high-voltage clearance testing |
How Does Ultra-Low Partial Discharge Enhance Diagnostic Sensitivity?
High background noise during field testing masks insulation defects such as void discharges, electrical treeing, and surface tracking. The YDQ-20kVA/100kV gas-insulated test transformer utilizes computer-modeled electric field grading rings and high-purity SF6 gas insulation (IEC 60376). This structure restricts internal partial discharge to $\le 5\text{ pC}$ at rated 100kV voltage.
When combined with Ultra-High Frequency (UHF) sensors, acoustic detection units (AE), or high-frequency current transformers (HFCT) under IEC 60270 framework, field engineers can pinpoint insulation anomalies before catastrophic dielectric breakdown occurs during commissioning.
Market Positioning and B2B Application Context
In municipal substations, underground power vaults, and densely populated urban areas, oil-filled test transformers present environmental and safety risks due to potential fluid leaks and fire risks (ASTM D1816). The fully sealed, explosion-proof, oil-free design of the YDQ-20kVA/100kV gas-insulated test transformer meets urban safety codes and environmental standards. It serves utility maintenance teams, EPC contractors, and third-party high-voltage testing laboratories.
Q: What is the primary advantage of YDQ-20kVA/100kV over traditional oil-immersed test sets?
A: Total physical mass is reduced by over 50%, while maintenance requirements like dielectric oil filtration (ASTM D877) are completely eliminated. The unit is explosion-proof and leak-free, making it suitable for enclosed substations.
Q: Can the YDQ-20kVA/100kV transformer be used for DC withstand testing?
A: Yes. By attaching an optional high-voltage silicon rectifier stack to the output bushing, the system converts AC output to DC high voltage for DC leakage current measurement on high-voltage power cables.
