Comprehensive Technical Guide to MSYDQ Pd Free High Voltage Testing System
Technical Evaluation of the Integrated Pd Free High Voltage Testing System (MSYDQ Series)

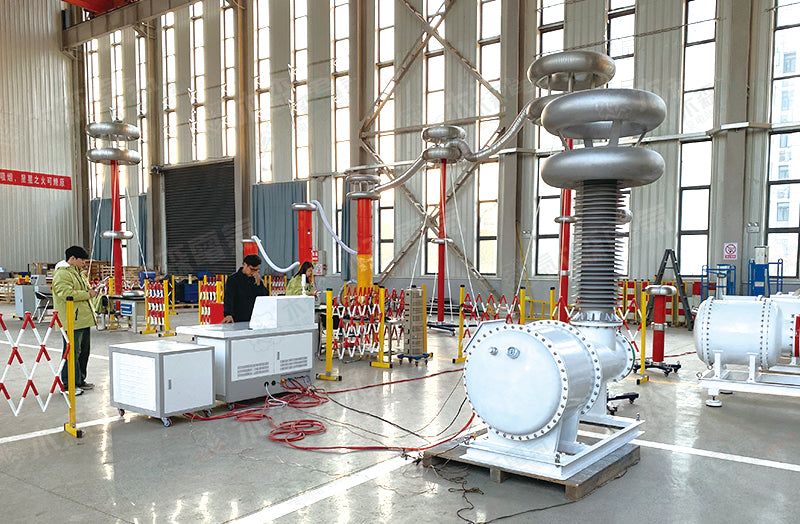

The Pd Free High Voltage Testing System (MSYDQ Series by Musen Electric) is an integrated high-voltage dielectric diagnostic unit engineered for insulation integrity verification, featuring guaranteed total partial discharge levels ≤3pC across ratings from 50kV to 1000kV and capacities from 50kVA to 1200kVA. Utilizing SF6 gas insulation, this system integrates the test transformer, voltage divider, coupling capacitor, and current-limiting resistor into a single vessel to eliminate external electromagnetic interference during high-voltage withstand and partial discharge evaluations.
How Does All-in-One Integration Enhance High-Voltage Diagnostics?
Conventional partial discharge diagnostic setups rely on discrete modules interconnected via external busbars and high-voltage leads. These bare configurations introduce stray capacitance, corona discharge points, and ambient noise that often inflate background readings beyond 10pC. The Pd Free High Voltage Testing System addresses these limitations by housing the voltage divider, coupling capacitor, and current-limiting reactor inside a grounded SF6 gas or high-strength epoxy cylinder. This architecture secures a baseline discharge metric of ≤3pC (with maximum limits maintained below 5pC under continuous overload stress), facilitating compliance with IEC 60270 and IEC 60060-1 test standards.
What Are the Core Technical Specifications of the MSYDQ Series?
Engineered for laboratory testing and mobile field diagnostics, the MSYDQ series operates across power frequency (50/60Hz) and variable frequency bands (30–300Hz) to support dielectric withstand and loss angle determinations.
| Parameter Specification | Standard Configuration Range | Diagnostic Compliance Standard |
|---|---|---|
| Rated Voltage Output | 50kV, 100kV, 150kV, 200kV, 250kV, 300kV, 500kV, 600kV, 1000kV | IEC 60060-1 / IEEE Std 4 |
| Rated Capacity Range | 50 kVA to 1200 kVA | IEC 60076-1 |
| Background Partial Discharge Level | ≤ 3 pC at full rated voltage (≤ 5 pC absolute max) | IEC 60270 / ASTM D1816 |
| No-Load Loss / Load Loss | No-load < 4% / Load loss < 9% | IEC 60076-1 |
| Frequency Response Range | Power Frequency (50/60 Hz) & Variable (30–300 Hz) | IEC 60270 / IEEE 400.2 |
How Does the Gas-Filled Design Drive Economic and Field Efficiency?
By using SF6 gas insulation, the Gas-Filled Partial Discharge-Free Test Transformer achieves high dielectric strength within a small physical footprint. This design eliminates the need for separate purchasing, calibration, and wiring of external voltage dividers and coupling capacitors, reducing total procurement expenditure. Additionally, the low footprint allows mounting on mobile diagnostic trucks for on-site testing of power safety tools, GIS gear, and sub-station transformers without requiring dedicated high-voltage hall construction.
Target Applications and Industry Compatibility
The Gas Insulated Hv Test-Transformer Systems serve manufacturers of switchgear, instrument transformers, bushings, and high-voltage power cables. They are also deployed by national electrical research institutes (EPRI), third-party calibration laboratories, and utility field maintenance crews requiring rapid deployment for AC dielectric strength verification under IEC 62271-200 and IEEE C37.20.2 standards.
Q: How does the MSYDQ system maintain a partial discharge level below 3pC during field operations?
A: By enclosing the coupling capacitor, voltage divider, and current-limiting resistor within a sealed SF6 gas chamber, ambient electromagnetic radiation and airborne corona are shielded. Internal electric fields are controlled using rounded corona rings and polished shielding electrodes, maintaining baseline noise ≤3pC.
Q: Can the MSYDQ series be operated with resonant test setups for long cable testing?
A: Yes. When coupled with variable frequency power sources (30–300Hz), the Gas Insulated Ac Discharge Free High Voltage Testing equipment operates alongside tuning reactors to perform resonant testing on high-capacitance loads like long XLPE cables, complying with IEC 60840.
