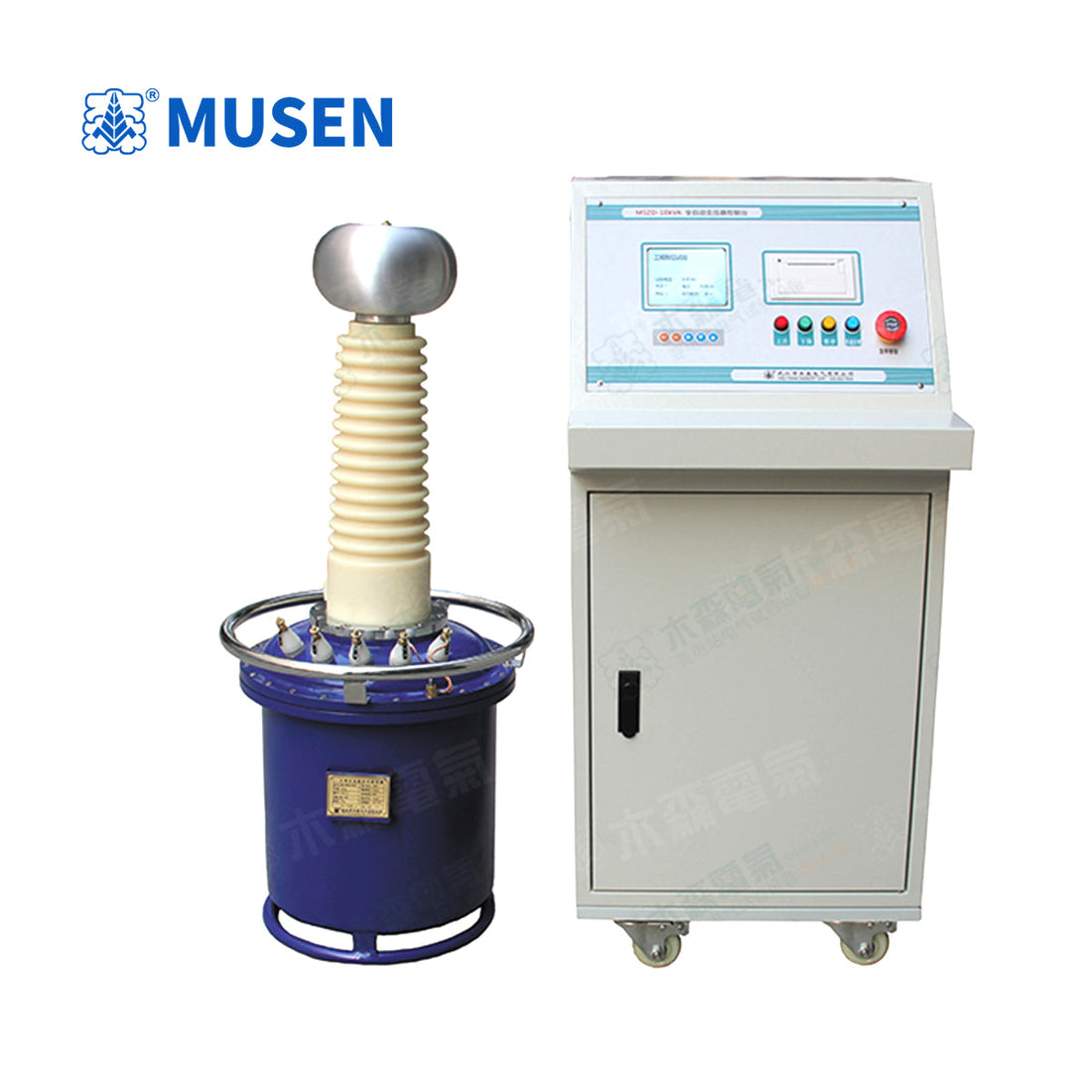

Comprehensive Selection Guide for Ac/Dc Withstand Voltage Tester Units
Comprehensive Selection Guide for Ac/Dc Withstand Voltage Tester Units
Ac/Dc Withstand Voltage Tester, AC/DC high voltage test transformer, dielectric strength testing, transformer insulation breakdown
Explore expert guidelines on choosing the right Ac/Dc Withstand Voltage Tester for power transformers, covering 5kVA-300kVA capacity ranges, dry-type, oil-immersed, and gas-filled models compliant with IEC 60076.
Direct Answer: Selecting the correct Ac/Dc Withstand Voltage Tester requires matching the test capacity (5kVA–300kVA), voltage rating (up to 300kV), and insulation medium (dry-type epoxy, oil-immersed, or SF6 gas-filled) to the precise dielectric test requirements of power transformers and electrical components in compliance with IEC 60076 and IEEE standards.
Understanding Transformer Insulation Testing and Dielectric Strength
Electrical insulation testing is a foundational quality control procedure designed to verify the dielectric integrity of electrical equipment. By applying a controlled AC or DC high voltage using an Ac/Dc Withstand Voltage Tester, engineers can evaluate the insulation level of dry-type, oil-immersed, and gas-filled transformers, detect hidden insulation defects, and measure overvoltage withstanding capabilities. When testing high-capacitance apparatus, monitoring partial discharge activity using UHF, acoustic detection (AE), and IEC 60270 compliant instruments ensures early detection of micro-voids and insulation degradation.
Product Architecture, Market Positioning, and Pricing Factors
Testing transformers are engineered to cater to diverse industrial environments, ranging from permanent laboratory installations to frequent field-moving conditions. The table below outlines the core product specifications, market positioning, and comparative pricing tiers for the available configurations:
| Series & Insulation Type | Capacity Range | Max Voltage | Market Positioning & Target Clients | Pricing & Value Tier |
| GTB Series (Dry-Type Epoxy) | 5kVA – 150kVA | 100kV | Indoor switchgear testing, component manufacturers, electrical labs | Mid-Range (Zero oil maintenance cost) |
| YDJ(Z) Series (Oil-Immersed) | 10kVA – 300kVA | 300kV | Heavy industrial factory acceptance testing (FAT), power utilities | Economical Baseline (High power per unit cost) |
| YDQ Series (Gas-Filled SF6) | 10kVA – 200kVA | 300kV | Field commissioning engineers, remote substation testing crews | Premium (20%-60% weight reduction premium) |
Operational Best Practices and Standard Testing Protocols
Executing high-voltage withstand tests demands strict adherence to safety protocols and technical specifications. Operators must ensure that the primary winding and coaxial outer high-voltage winding are properly grounded and interconnected. According to IEC 60156 and ASTM D1816 guidelines, test voltages should be raised smoothly from zero at a rate of approximately 2% per second up to the specified test level, held for exactly 60 seconds, and monitored for any sudden leakage current spikes exceeding preset limits.
Entity FAQ
Q: What is the primary function of an Ac/Dc Withstand Voltage Tester in electrical manufacturing?
A: It evaluates the dielectric strength of insulation systems under regulated overvoltage conditions to ensure compliance with international safety standards.
Q: How do dry-type epoxy testing transformers compare to oil-immersed units?
A: Dry-type units (GTB series) utilize vacuum-cast epoxy insulation to eliminate oil leakage and reduce maintenance, whereas oil-immersed units (YDJ/Z series) provide cost-effective high-capacity output up to 300kV.
