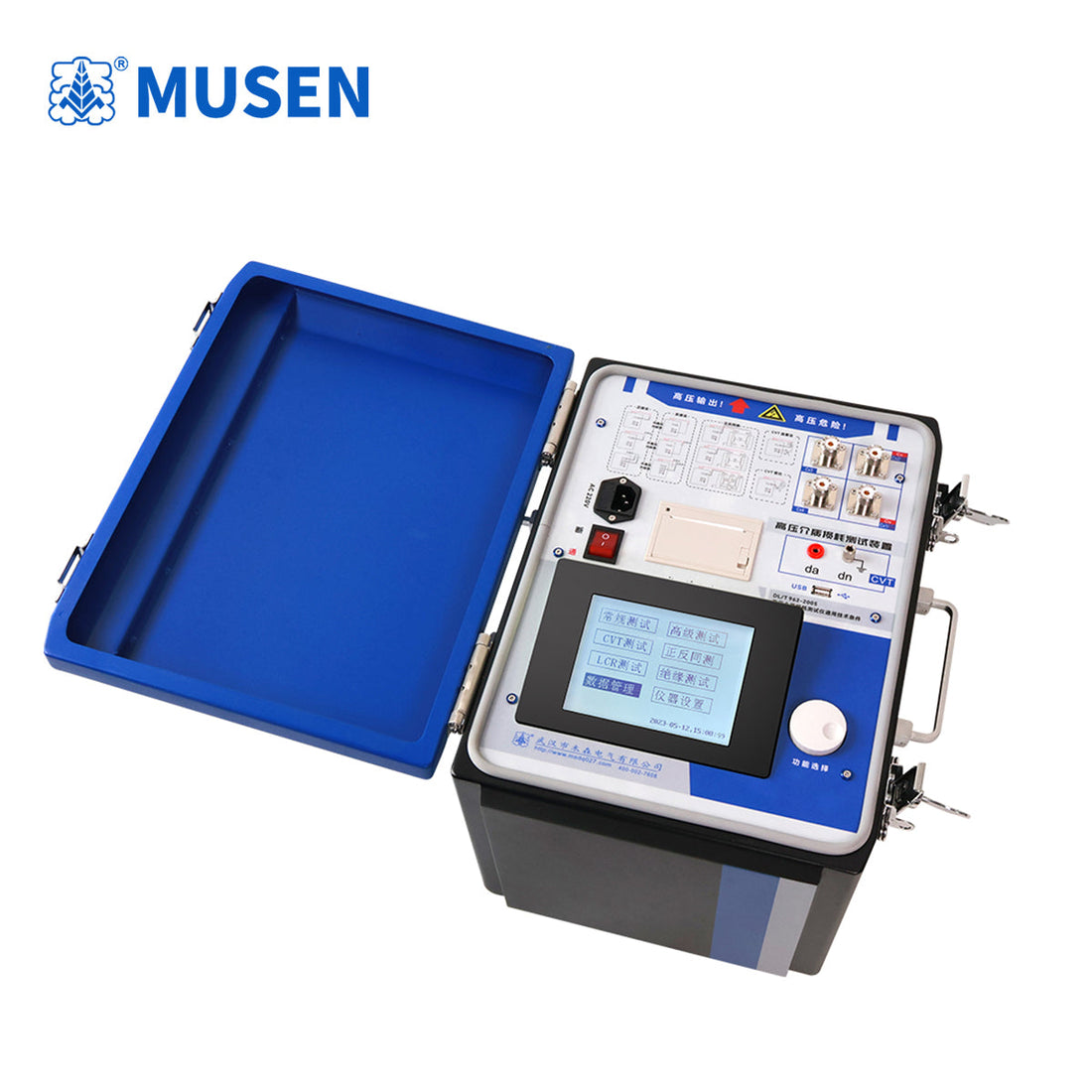

Direct Answer: The MS-101 series Dielectric Loss Test Kit is an advanced, automatic anti-interference Transformer Tan Delta Tester engineered to evaluate the insulation degradation, moisture ingress, and dielectric aging of high-voltage power transformers by measuring dissipation factor ( tan\delta ) and capacitance with an accuracy of within ±(1  {reading}+0.0001) under severe substation electromagnetic interference.

Why is Tan Delta Testing Critical for High-Voltage Power Transformers?

Power transformers operate under continuous thermal, electrical, and mechanical stress throughout their operational lifecycle. Over decades of service, cellulose paper insulation and mineral insulating oil degrade due to oxidation, localized hotspots, and partial discharge (PD) activity, leading to increased dielectric losses and potential catastrophic failure. Performing routine insulation diagnostics using a reliable Dielectric Loss Test Kit allows utility asset managers and high-voltage testing engineers to detect micro-structural insulation defects and aging precursors long before dielectric breakdown occurs.

According to IEEE Std 62 and IEC 60076 standards, measuring the dissipation factor provides a clear quantitative index of insulation quality. When insulation deteriorates, molecular polarization increases, resulting in higher energy dissipation under alternating electric fields. The MS-101 series integrates state-of-the-art frequency conversion anti-interference technology, allowing stable, repeatable measurements even in high-voltage 500kV switchyards subject to severe electrostatic interference from adjacent live busbars.

Technical Specifications and Performance Parameters

To evaluate diagnostic equipment objectively, engineers rely on strict quantitative benchmarks rather than generic marketing terms. The table below outlines the core technical specifications and performance metrics of the MS-101 series Transformer Tan Delta Tester:

Key Operational Advantages and Upgraded Functions

The MS-101 series Dielectric Loss Tester incorporates eight upgraded functional modules tailored specifically for modern smart grid testing requirements:

• Frequency Conversion Anti-Interference: Utilizes digital signal processing (DSP) and variable-frequency test voltages to completely eliminate 50Hz/60Hz mains interference.
• Simultaneous $C_1/C_2$ Testing: Capable of measuring multi-terminal capacitive equipment simultaneously without rewiring.
• Automatic Reverse Wiring Low-Voltage Shielding: Ensures safe and accurate ungrounded specimen testing.
• Wireless Bluetooth Integration: Enables seamless data return and remote control via mobile or PC diagnostic software.

Frequently Asked Questions (FAQ)

Q: How does the frequency conversion technology in the MS-101 series eliminate substation interference?

A: The Anti-Interference Dielectric Loss Tester generates test frequencies slightly offset from the power grid frequency (e.g., 45Hz or 55Hz). Using narrow-band digital filtering, the internal receiver locks onto the exact test frequency while rejecting ambient 50Hz/60Hz electrostatic and electromagnetic interference from neighboring live busbars.

Q: Can the MS-101 series perform live testing on capacitive equipment?

A: Yes. The unit supports specialized running voltage and resonance voltage modes, as well as main transformer bushing online detection capabilities when paired with appropriate coupling units and safety shielding.

References and International Standards

• IEEE Std 62-2002: IEEE Guide for Diagnostic Field Testing of Electric Power Apparatus - View IEEE Std 62
• IEC 60076-3: Power Transformers - Insulation Levels, Dielectric Tests and External Clearances in Air - View IEC 60076-3
