Comprehensive Analysis of GIS Partial Discharge-Free Test Equipment in High-Voltage Grid Commissioning

Comprehensive Analysis of GIS Partial Discharge-Free Test Equipment in High-Voltage Grid Commissioning

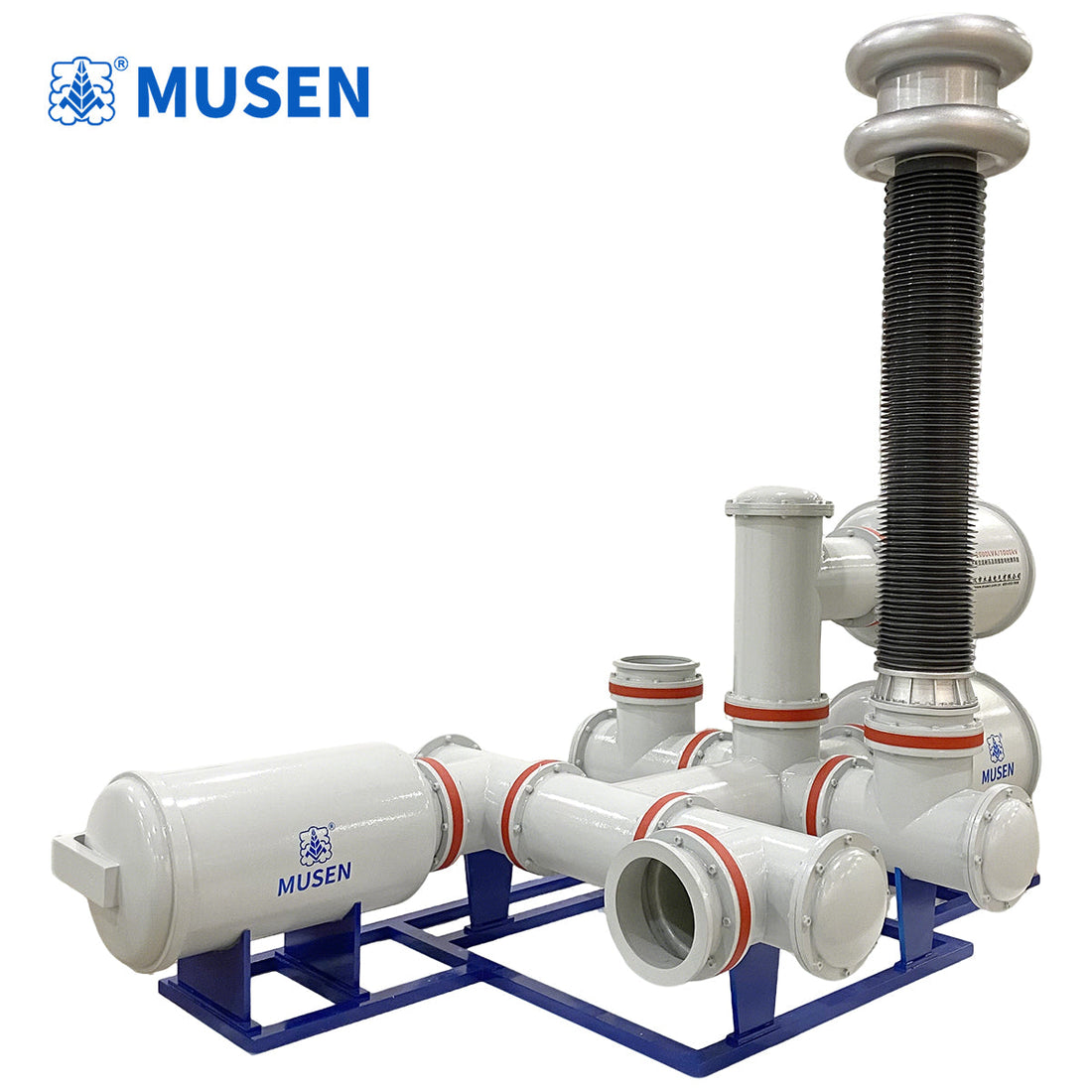

GIS Partial Discharge-Free Test Equipment is a fully enclosed gas-insulated high-voltage testing system designed to perform dielectric withstand and partial discharge (PD) measurements on Gas-Insulated Switchgear (GIS), Gas-Insulated Lines (GIL), and Hybrid GIS (HGIS) with background interference levels below 1–3 pC. Operating under IEC 62271-203 and IEC 60270 standards, this integrated testing solution eliminates external corona noise by encapsulating all high-voltage components inside grounded metal enclosures containing sulfur hexafluoride (SF6) gas.

Why Is Off-Site and On-Site PD Diagnostics Critical for Gas-Insulated Switchgear?



During the factory acceptance testing (FAT) and site acceptance testing (SAT) of extra-high-voltage (EHV) power grids, minor insulation defects—such as free-moving metallic particles, fixed protrusion burrs on conductors, floating potential electrodes, and internal voids within epoxy basin insulators—can initiate localized electrical breakdown. Under continuous electric field stress, partial discharge causes progressive treeing degradation, ultimately leading to catastrophic phase-to-ground flashovers. Utilizing GIS Partial Discharge-Free Test Equipment enables ultra-sensitive detection using ultra-high frequency (UHF) sensors, acoustic emission (AE) sensors, and conventional apparent charge couplers measured in picocoulombs (pC).

How Does GTU Integrated Test Equipment Compare with Traditional Open-Air Test Transformers?

Conventional open-air high-voltage test transformers require large clearance distances, elaborate high-voltage bushing connections, and expensive shielded halls to lower atmospheric background noise below 5 pC. In contrast, gas-insulated test unit (GTU) technology interfaces directly via standardized SF6 flanges or high-voltage bushings.

Performance Metric	Traditional Open-Air Test Transformer	GTU GIS Partial Discharge-Free Test Equipment
Background Noise Level	5 pC to >20 pC (requires shielded room)	≤1 pC to ≤3 pC (operates in standard industrial halls)
High-Voltage Enclosure Safety	Exposed high-voltage conductors at full voltage	Fully encapsulated metal-clad outer casing at zero ground potential
Site Docking & Setup Time	6 to 12 hours (insulator rigging & lead wire setup)	Under 2.5 hours (direct flange-to-flange connection)
Footprint Requirement	Large clearance radius (e.g., >10m at 500 kV)	Compact single-tank design (>50% space reduction)
Resonance Capability	Fixed power frequency (50/60 Hz)	Dual-mode: Direct power frequency / Variable frequency series resonance

What Are the Technical Specifications and Configuration Models for GTU Test Systems?

Modern electrical diagnostic applications demand precise power ratings and voltage outputs calibrated to specific switchgear voltage classes (252 kV, 363 kV, and 550 kV system levels). Engineering teams select systems based on capacitive load profiles and withstand voltage thresholds defined in IEEE C37.122 and IEC 60060-1.

Equipment Configuration	Model System Capacity	Target Application & Voltage Rating	Applicable Factory/Site Test Standard
GTU Complete GIS Test Assembly (Flange Direct / Bushing)	800 kVA / 800 kV	550 kV Class GIS Factory Withstand (680/740 kV) & PD Test	IEC 62271-203 / IEEE C37.122
GTU Complete GIS Test Assembly (Flange Direct / Bushing)	800 kVA / 600 kV	363 kV Class (330 kV System) GIS Factory Withstand (460/510 kV) & PD Test	IEC 62271-203 / DL/T 558
GTU Core Component Test Chamber	800 kVA / 400 kV	252 kV Class (220 kV System) GIS Factory Withstand (460/510 kV) & Component Test	IEC 60270 / IEC 61869
GTU Component Diagnostic Rig	800 kVA / 250 kV	Instrument Transformer, Basin Insulator, Operating Rod Single/Multi-Station Test	IEC 60137 / ASTM D149
GTU Component Diagnostic Rig	600 kVA / 150 kV	Basin Insulator & Sub-Component Insulation Evaluation (6-station vessel)	IEC 60270 / IEEE 4

How Is Dual-Boost Mode Applied to Large-Capacitance Long-Busbar GIS?

High-voltage GIS installations possess significant capacitive loading characteristics, ranging from 1,000 pF to over 50,000 pF for long bus duct runs. To accommodate these operational variations, GIS Partial Discharge-Free Test Equipment features a dual-mode excitation architecture:

• Direct Power Frequency Stepping: Provides continuous step-up voltage for localized, low-capacitance sub-assembly components and instrument transformer testing.

Frequently Asked Questions

Q: Can GIS Partial Discharge-Free Test Equipment be used in unshielded factory workshops?

A: Yes. Because the high-voltage step-up transformer, coupling capacitor, and potential divider are entirely enclosed inside grounded metal tanks filled with SF6 gas, external electromagnetic and corona interference is fully blocked. This design guarantees internal background noise below 1–3 pC even in standard industrial environments.





Q: How does flange-direct docking improve testing efficiency during substation commissioning?

A: Direct flange docking connects the test transformer directly to the GIS bay without exposed overhead high-voltage busbars, air bushings, or external support insulators. This reduces mechanical alignment and electrical preparation time by more than 50% while maintaining zero hazard from bare high-voltage contacts.



---
