Direct Answer & Introduction

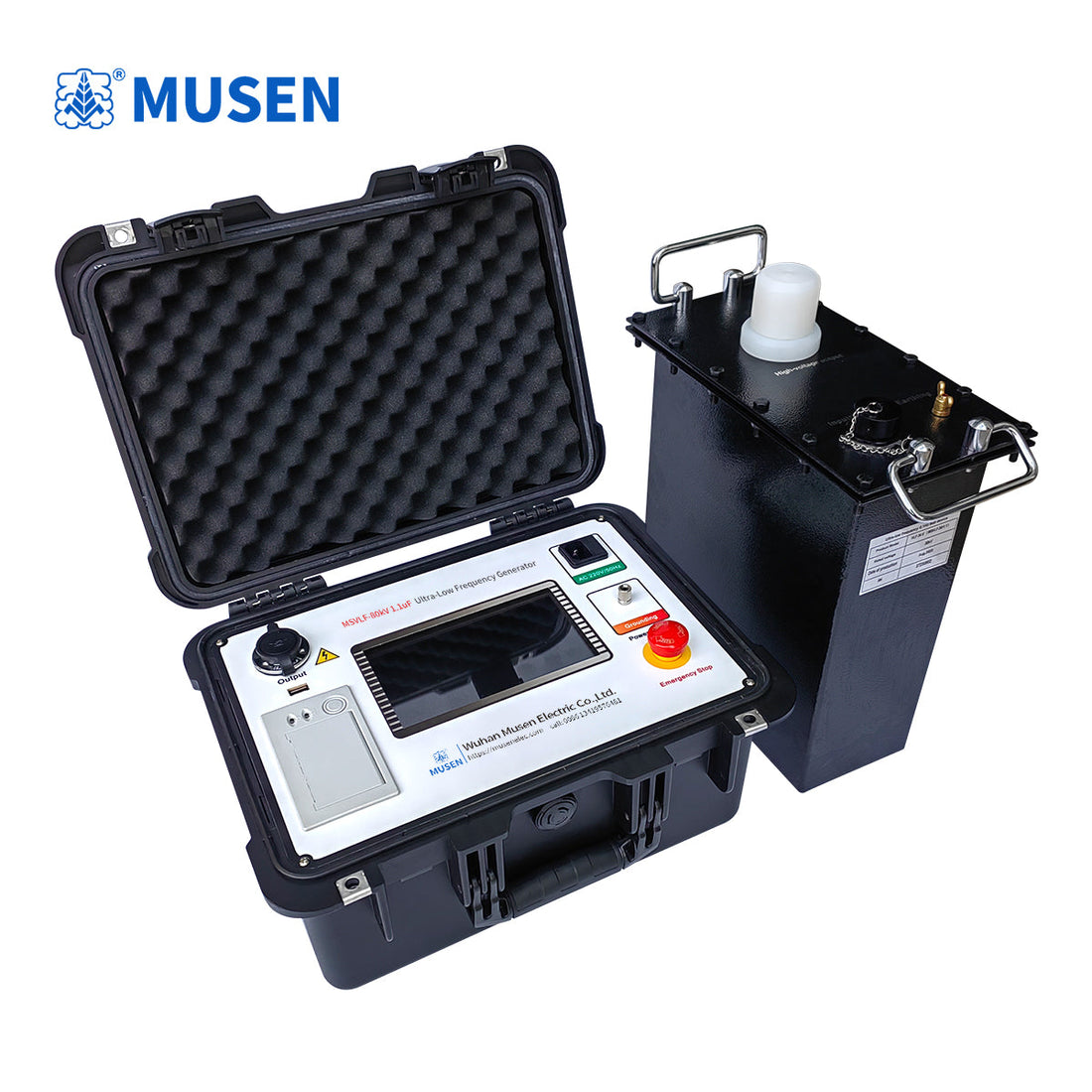

A vlf hipot tester (specifically the MSVLF-30kV/60kV/90kV/1.1uF 0.1Hz model) is an advanced Ultra-Low Frequency Generator engineered to perform nondestructive insulation testing on medium-voltage power cables in compliance with IEEE 400.2 and IEC 60502 standards. By delivering a 0.1Hz sinusoidal waveform, this Very Low Frequency Cable Tester reduces the required testing power by a factor of 500 compared to 50/60Hz AC testing while maintaining high defect detection efficiency.

Technical Principles and Architecture of the Very Low Frequency (Vlf) Generator

Modern diagnostic testing relies heavily on digital frequency conversion technology and microcomputer control. The MSVLF-30kV/60kV/90kV/1.1uF 0.1Hz unit integrates high- and low-voltage closed-loop negative feedback control circuits, ensuring that the output voltage experiences zero capacity rise effect. The instrument automates boosting, lowering, measuring, and protective functions without operator intervention.

How to Test Medium-Voltage XLPE Cables Efficiently in the Field?

Field engineers frequently face challenges when testing long cable runs. The integration of a (Vlf) Generator allows engineers to identify water tree degradation, insulation voids, and mechanical damage before catastrophic failure occurs, aligning with partial discharge diagnostics (such as UHF, acoustic detection, and IEC 60270 principles).

Technical Specifications of the MSVLF-30kV/60kV/90kV/1.1uF 0.1Hz

Safety Protocols and Triple-Protection Mechanisms

Field safety is paramount during high-voltage commissioning. The instrument features multi-layer protection including overvoltage protection, high-side overcurrent protection, and low-side overcurrent protection, with an actuation response time of ≤ 10ms. Furthermore, optical isolation separates the low-voltage controller from the high-voltage generator, ensuring total operator safety during outdoor substation work.

Frequently Asked Questions (FAQ)

• Q: What is the primary advantage of using a 0.1Hz frequency over standard 50Hz testing?

  • A: A 0.1Hz vlf hipot tester reduces the physical size and power requirements of the test set by approximately 500 times, making it portable for field deployment while effectively stressing cable insulation to detect defects like water trees in accordance with IEEE 400.2.

• Q: How does the closed-loop negative feedback control affect testing?

  • A: The high- and low-voltage closed-loop negative feedback circuit ensures that the output voltage remains stable, completely eliminating the capacitive load-induced voltage rise effect (capacity rise effect).
