Commercial and Technical Advantages of the Pd Free Test Transformer
Economic and Operational Value of the MSYDQ Pd Free Test Transformer

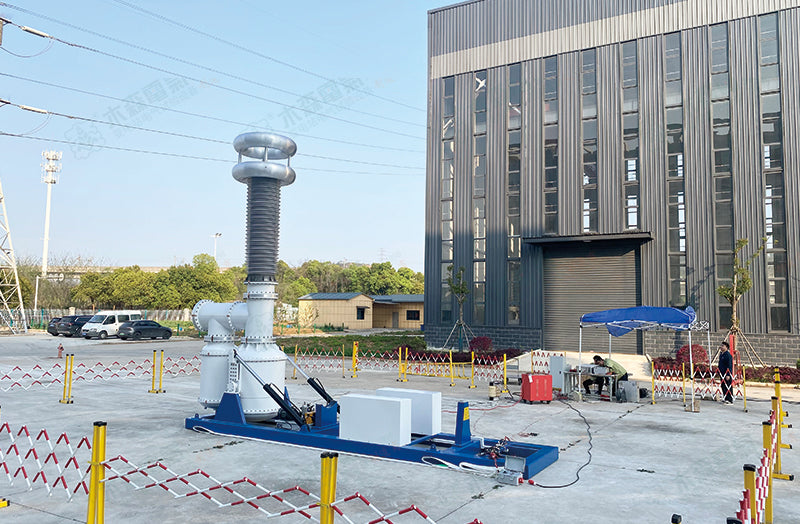

The MSYDQ Pd Free Test Transformer series from Musen Electric delivers low-noise high-voltage output with baseline partial discharge levels guaranteed below 3pC across capacities from 50kVA to 1200kVA. By housing the transformer, voltage divider, coupling capacitor, and current-limiting reactor inside a single compact SF6 gas container, this system eliminates the need for separate auxiliary components. This integrated design reduces equipment procurement expenses, lowers facility footprint requirements, and speeds up test deployment for electrical apparatus manufacturers and testing laboratories.
How Does the Integrated Design Lower Total Cost of Ownership?
Evaluating high-voltage diagnostic equipment based solely on initial purchase price overlooks ongoing costs related to facility space, setup time, and energy loss. The MSYDQ Gas-Filled Partial Discharge-Free Test Transformer lowers total cost of ownership (TCO) through several key features:
| Cost Center Category | Traditional Multi-Component System | MSYDQ Integrated Gas System |
|---|---|---|
| Capital Procurement (CAPEX) | Separate purchases required for transformer, divider, filter, and capacitor | Single integrated unit including all internal high-voltage components |
| High-Voltage Lab Footprint | Large floor area needed for safety clearances between discrete units | 30% to 40% of traditional footprint requirement |
| Setup & Cable Wiring Time | 1.5 to 3 hours per test setup (multiple interconnects) | Under 20 minutes (direct high-voltage bus connection) |
| Thermal & Electrical Loss | No-load loss > 5%, Load loss > 10% | No-load loss < 4%, Load loss < 9% |
How Does the System Ensure Accuracy Under IEC 60270 Standards?
Accurate partial discharge measurement requires isolating micro-volt signals generated by insulation defects from background electrical noise. The Gas Insulated Ac Discharge Free High Voltage Testing system achieves high signal integrity through the following design measures:
- Co-Axial Signal Paths: Coupling signals pass directly through internal shielded connections to the diagnostic unit, avoiding external noise pickup.
- Low Internal Partial Discharge (≤3pC): Precision-manufactured windings and gas-isolated high-voltage nodes prevent internal breakdown masking specimen signals.
- Over-Voltage and Over-Current Safety Circuits: Fast-acting electronic relays isolate high voltage within milliseconds during insulation flashovers, protecting calibration instruments.
Target Customers and Market Application
The MSYDQ series serves manufacturers of high-voltage transformers, switchgear, cable accessories, and bushings requiring certified factory acceptance testing. It is also utilized by utility field services and national electrical testing institutes seeking a mobile, high-precision diagnostic tool for field deployment.
Q: What custom voltage ratings can be configured for the MSYDQ series?
A: Standard output steps include 50kV, 100kV, 150kV, 200kV, 250kV, 300kV, 500kV, 600kV, and 1000kV. Power capacities are scalable from 50kVA up to 1200kVA based on application requirements.
Q: Can the MSYDQ test transformer operate continuously at full capacity?
A: Yes. The system is designed with thermal dissipation channels and low-loss magnetic cores (P0 < 4%, Pk < 9%), supporting extended operation during routine withstand and diagnostic testing.
