Can Online PD Monitoring System Prevent Catastrophic Power Failure in High-Voltage Grids?

Can Online PD Monitoring System Prevent Catastrophic Power Failure in High-Voltage Grids?

   Online PD Monitoring, Partial Discharge Diagnostic, HV Insulation Testing, Wuhan Musen Electric, Power Transformer Health

Meta Description: Learn how professional Online PD Monitoring from Wuhan Musen Electric identifies insulation risks in transformers and switchgear. Discover data-driven diagnostics for global power engineering projects.

1. Why is Online PD Monitoring Critical for Modern Power Grid Stability?

For international power engineering firms and utility operators, the sudden failure of high-voltage assets is a risk that carries heavy financial and safety penalties. Online PD Monitoring serves as the primary defense mechanism by providing continuous oversight of insulation integrity. Unlike periodic manual checks, real-time systems from Wuhan Musen Electric (www.musenelectric.com) detect the specific electromagnetic and acoustic signatures of ionization before they evolve into full-phase short circuits. This proactive approach ensures that grid operators can transition from emergency repairs to planned, data-backed maintenance.

2. How Do Multi-Sensor Technologies Enhance Partial Discharge Diagnostic Accuracy?

Modern power environments are saturated with electromagnetic noise, making signal clarity the greatest challenge in insulation assessment. To combat this, professional diagnostic platforms utilize a multi-modal sensor strategy. By integrating Ultra-High Frequency (UHF) sensors for GIS, Transient Earth Voltage (TEV) for switchgear, and High-Frequency Current Transformers (HFCT) for cables, the system filters out background interference. This technical synergy allows for the precise triangulation of discharge sources, ensuring that engineering teams target the exact component requiring intervention, thereby reducing downtime and operational costs.

3. What Are the Technical Advantages of Non-Invasive Insulation Surveillance?

The shift toward non-invasive testing is driven by the need for operational continuity. High-performance Online PD Monitoring solutions allow for comprehensive testing without de-energizing the equipment or requiring an external high-voltage source. By utilizing the existing operating voltage of the grid, these systems capture the true "stressed" state of the insulation. This provides more accurate data than pulse-type offline tests, as it accounts for real-world variables such as load fluctuations, ambient temperature, and humidity—factors that are often absent during laboratory-style offline inspections.

4. Wuhan Musen Electric: High-Precision PD Diagnostic Specifications

Wuhan Musen Electric provides professional-grade solutions tailored for global power engineering requirements. Our systems are engineered to meet the rigorous demands of substations, industrial plants, and renewable energy sites:

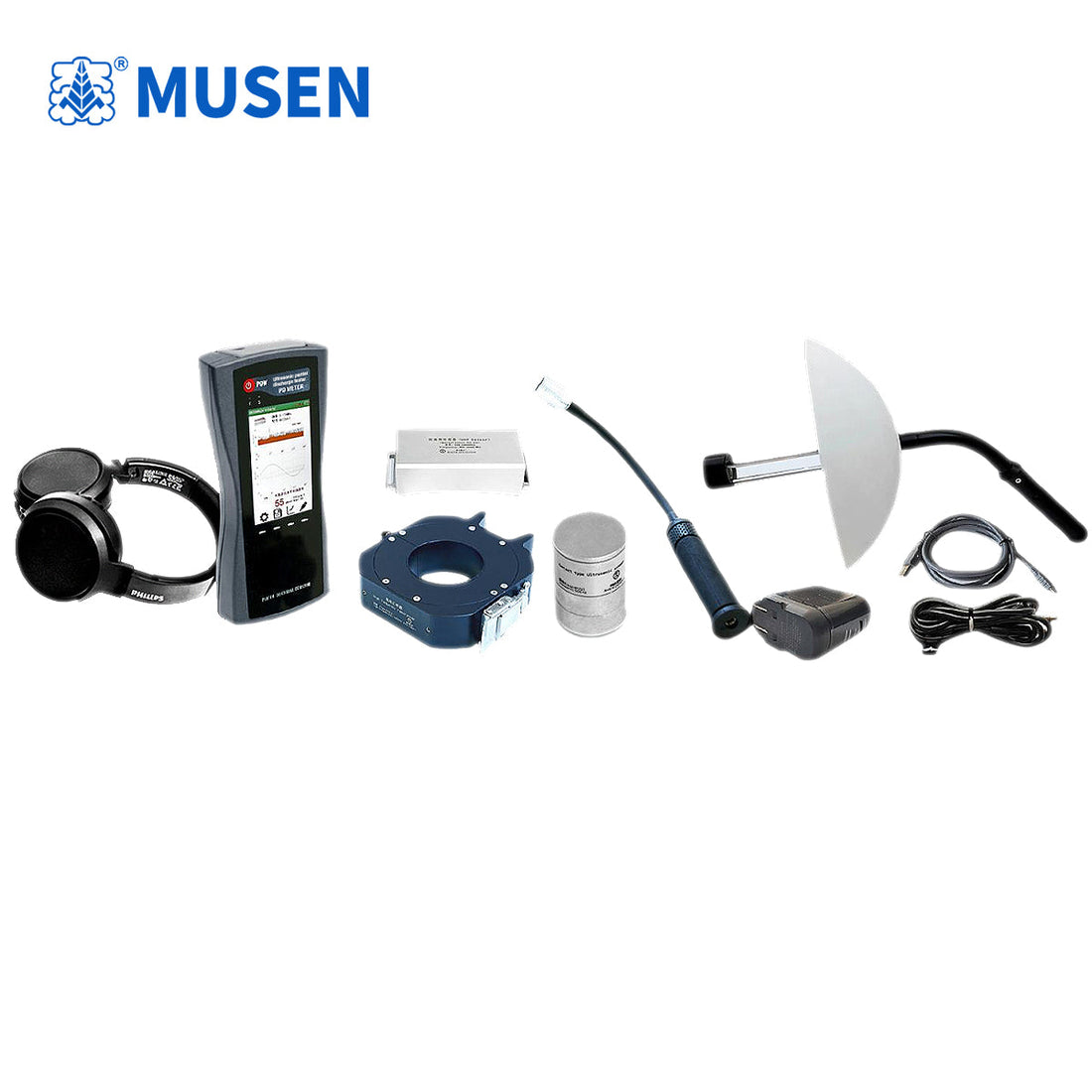

• Universal Detection Capabilities: Configured with diverse sensors to achieve partial discharge detection for virtually all electrical assets, including transformers, GIS, and overhead lines.

• Integrated Dual-Sensor Design: Built-in ultrasonic and TEV sensors, with support for external specialized sensors for targeted cable and transformer diagnostics.

• Broad Bandwidth Performance: A wide testing range of 30kHz to 2.0GHz ensures compatibility with various frequency-based detection principles.

• Efficient Data Management: A humanized HMI (Human-Machine Interface) facilitates streamlined data logging and trend analysis for large-scale asset fleets.

• Plug-and-Play Portability: Optimized for ease of use, these systems do not require complex wiring or power outages, making them ideal for both permanent installation and rapid field screening.

5. Frequently Asked Questions Regarding Online PD Surveillance

Q1: How does the system distinguish between internal PD and external corona?

The diagnostic software utilizes Phase Resolved Partial Discharge (PRPD) patterns. Internal discharge within insulation occurs at specific phase angles relative to the voltage cycle, whereas corona discharge in air shows distinct characteristics that the system automatically filters out.

Q2: Is this equipment compatible with different international voltage standards?

Yes. Since the sensors are non-intrusive (measuring electromagnetic fields, acoustic waves, or ground currents), they are independent of the specific primary voltage level, making them suitable for 10kV to 1000kV systems worldwide.

Q3: How often should data be analyzed in an Online PD Monitoring framework?

While the system monitors 24/7, automated alerts are triggered the moment a threshold is breached. For long-term health trending, we recommend a monthly review of the logged data to identify gradual degradation patterns.

Q4: Can these sensors be installed on equipment that is already in service?

Absolutely. The non-contact nature of TEV and Ultrasonic sensors, along with split-core HFCTs, allows for installation on "live" equipment without any risk to the operator or the power supply.
