B2B Buyer Guide: Technical Comparison and ROI Analysis for Gas-Insulated Test Transformers
B2B Buyer Guide: Technical Comparison and ROI Analysis for Gas-Insulated Test Transformers
A gas-insulated test transformer utilizes SF6 gas insulation to provide high-voltage step-up capabilities at 40% to 60% of the weight and volume of traditional oil-immersed test sets. This guide evaluates key selection criteria—including dielectric efficiency, physical footprint, maintenance costs, and market pricing—to assist procurement managers, testing laboratories, and power utility buyers in selecting high-voltage AC withstand equipment via www.musenelectric.com.
Comprehensive Feature Comparison: SF6 Gas vs Mineral Oil Test Sets
|
Evaluation Parameter |
Gas-Insulated (SF6) Transformer |
Oil-Immersed (Mineral Oil) Transformer |
|---|---|---|
|
Dielectric Medium |
SF6 Gas (IEC 60376) |
Transformer Oil (IEC 60296) |
|
Weight & Footprint |
40% - 60% of oil equivalent (Portable) |
100% (Heavy, requires crane/rigging) |
|
Maintenance Need |
Zero fluid maintenance; annual gauge check |
Periodic oil filtering, breakdown test (ASTM D877) |
|
Fire & Explosion Risk |
Zero fire risk; non-flammable gas |
Oil leak hazards; potential fire risk |
|
Partial Discharge Level |
≤ 5 pC (Ideal for precision PD tests) |
Typically 10 pC - 30 pC |
|
Initial Capital Cost |
Moderate Premium (+15% to +25%) |
Baseline Economy |
Target Service Clients and Strategic Market Positioning
The market selection for the YDQ series gas-insulated test transformer is categorized by operational requirements:
1. Emergency Field Service & Mobile Testing Teams
The YDQ-10kVA/100kV unit allows two operators to manually position the equipment inside confined substation cells without overhead cranes.
2. High-Density Urban Substation Maintenance Contractors
The YDQ-20kVA/100kV system provides 200mA output current while eliminating oil spill risks in underground transmission vaults subject to strict environmental regulations.
3. High-Voltage Line Safety Inspection Centers

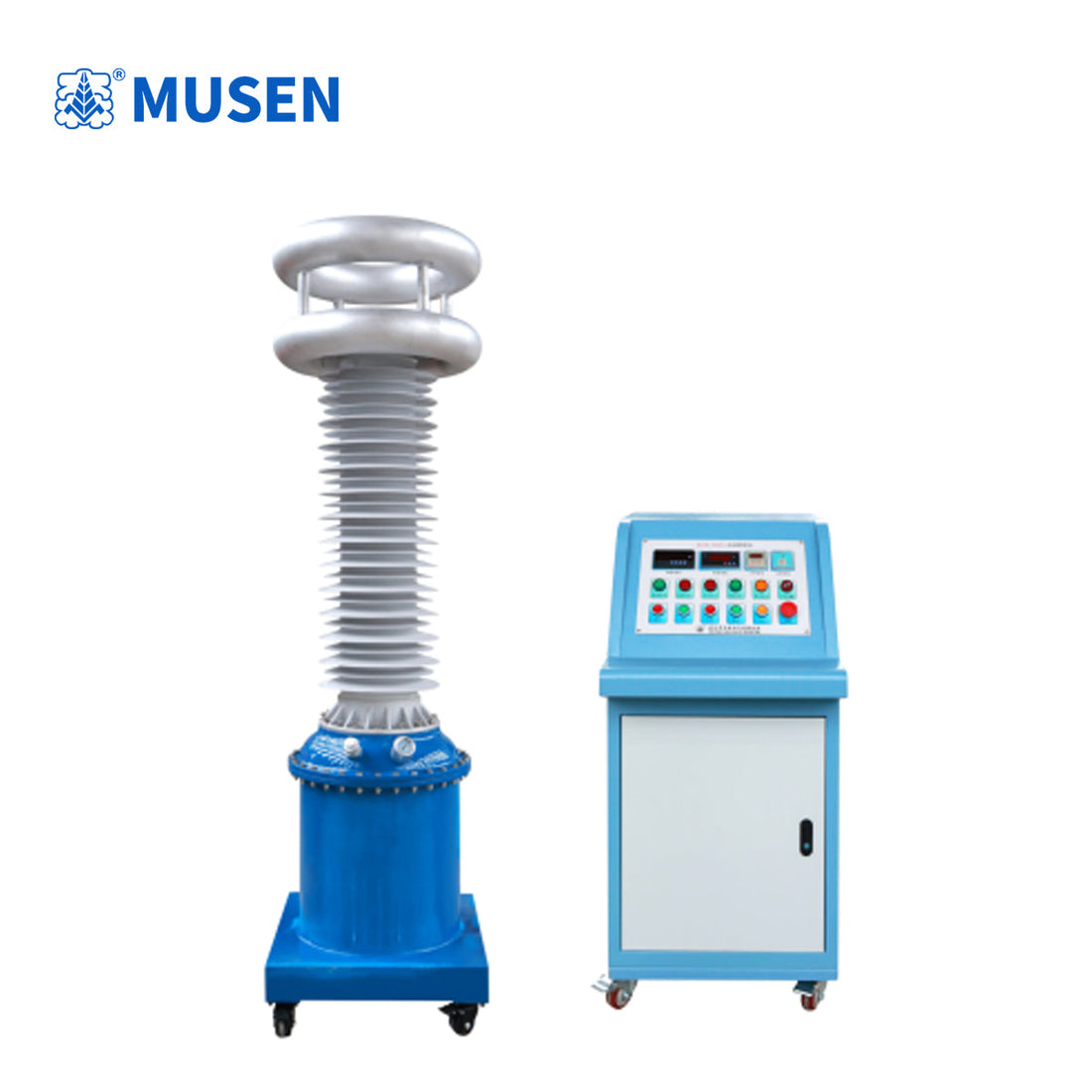

The YDQ-30kVA/250kV unit supplies standard-compliant voltage levels up to 250kV AC for testing live-working rods and safety apparel per IEC 61243-1.
Total Cost of Ownership (TCO) and Purchase Decision Factors
Although an SF6 gas-insulated test transformer carries a slightly higher upfront acquisition cost, it eliminates auxiliary maintenance expenses such as oil dielectric testing (ASTM D1816), vacuum oil purification systems, and seal replacements. Reduced transportation weight lowers logistics and field labor costs, delivering ROI within 18 to 24 months of deployment.
Q: What certifications should buyers request when sourcing gas-insulated test transformers?
A: Procurement specifications should mandate compliance with IEC 60060-1 (High-Voltage Test Techniques), IEC 60270 (Partial Discharge Measurements), and ISO 9001 manufacturing quality standards.
Q: How is SF6 gas pressure monitored during long-term storage?
A: Each YDQ series unit is fitted with a temperature-compensated stainless steel pressure gauge. The gas pressure remains stable across extended storage periods, requiring only visual confirmation prior to operation.
