Anti-interference dielectric loss tester  | Detailed introduction of technical principles

The core testing principle of a dielectric analyzer is to apply a frequency-adjustable alternating electric field to the insulating material and characterize its intrinsic properties, such as dielectric constant and dielectric loss, by precisely measuring its dielectric response.

Under the influence of the alternating electric field, the dipoles inside the dielectric will undergo reorientation polarization. The instrument applies sinusoidal voltages of different frequencies (from extremely low to high frequencies) to the sample through electrodes and simultaneously measures the current signal flowing through the sample. By performing vector analysis on the amplitude and phase relationship of voltage and current signals, the complex dielectric constant (real part ε' reflects energy storage capacity, imaginary part ε" reflects loss capacity) and loss factor tanδ can be accurately calculated.

By plotting the spectral curves of these parameters as a function of frequency, temperature, or time, various microscopic information such as polarization mechanisms, molecular motion, phase transitions, and impurity ion migration in materials can be analyzed in depth. This is a non-destructive precision analysis technique widely used in materials science, electronic component R&D, and other fields. Anti-interference dielectric loss tester, dielectric loss (tanδ) tester, automatic anti-interference dielectric loss tester 10kV dielectric loss:

1. Features CVT self-excitation method testing; single wiring; simultaneous measurement of capacitance and tanδ of C1 and C2.

2. Features reverse wiring low-voltage shielding and high-voltage shielding functions; under CVT bus grounding conditions, 10kV reverse wiring dielectric loss measurement of C11 can be performed without disconnection.

3. Features external voltage and external CN measurement functions.

4. Features CVT turns ratio measurement function. 5. Meets the transformation ratio measurement requirements of 35-500kV CVT devices.

6. Features multi-channel simultaneous measurement, allowing simultaneous testing of dielectric loss values for four test samples.

7. Features insulation resistance testing, capable of testing polarization index, absorption ratio, and insulation resistance.

8. Features automatic LCR measurement, capable of measuring inductance, capacitance, and resistance.

9. Employs frequency conversion technology to eliminate 50Hz power frequency interference in the field, ensuring reliable data even in environments with strong electromagnetic interference.

10. Overcurrent protection function, preventing damage to the instrument in case of short circuit or breakdown of the test sample.

11. Includes a standard capacitor and high-voltage power supply, facilitating on-site testing and reducing on-site wiring.

12. The instrument features a large LCD screen, simple operation, and Chinese character menu prompts during the testing process.

13. The instrument's function interface includes corresponding wiring diagrams, greatly simplifying wiring for the operator.

1. Operating conditions: -15℃-40℃, RH＜80%

2. Anti-interference principle: Frequency conversion method

3. Power supply 1. AC: 220V±10% (Allows generator)

2. High Voltage Output: 0.5KV - 12KV in 0.1kV increments

3. Accuracy: 2%

4. Maximum Current: 200mA

5. Capacity: 2000VA

6. Self-Excited Power Supply: AC 0V-50V 15A

7. Single Frequency: 45.0Hz-65.0Hz (Adjustable)

8. Dual Frequency: 45.0HZ 55.0HZ 47.5HZ 52.5HZ

9. Single Frequency: 55.0HZ 65.0HZ 57.5HZ 62.5HZ

10. Resolution: tgδ: 0.1% Cx: 0.1pF

11. Accuracy: △tgδ: ±(reading*1.0%+0.040%).△Cx ±(Reading * 1.0% + 1pF)

13. Measurement range tgδ: No limit

C x 15pF < Cx < 300nF

10KV Cx = (Cx1 + Cx2 + Cx3 + Cx4) < 60 nF

5KV Cx = (Cx1 + Cx2 + Cx3 + Cx4) < 150 nF

1KV Cx = (Cx1 + Cx2 + Cx3 + Cx4) < 300 nF

CVT test Cx = (Cx1 + Cx2 + Cx3 + Cx4) < 300 nF

14. LCR measurement range: Inductance L > 20H (2kV), Resistance R > 10KΩ (2kV)

15. LCR measurement accuracy: 1%, angular resolution 0.01

16. CVT turning ratio range: 10-10000
17. CVT ratio accuracy: 1% CVT ratio resolution: 0.01
18. Memory size: Supports USB flash drive data storage
Media analyzer, tanδ test kit, dielectric loss tester, dielectric loss test kit

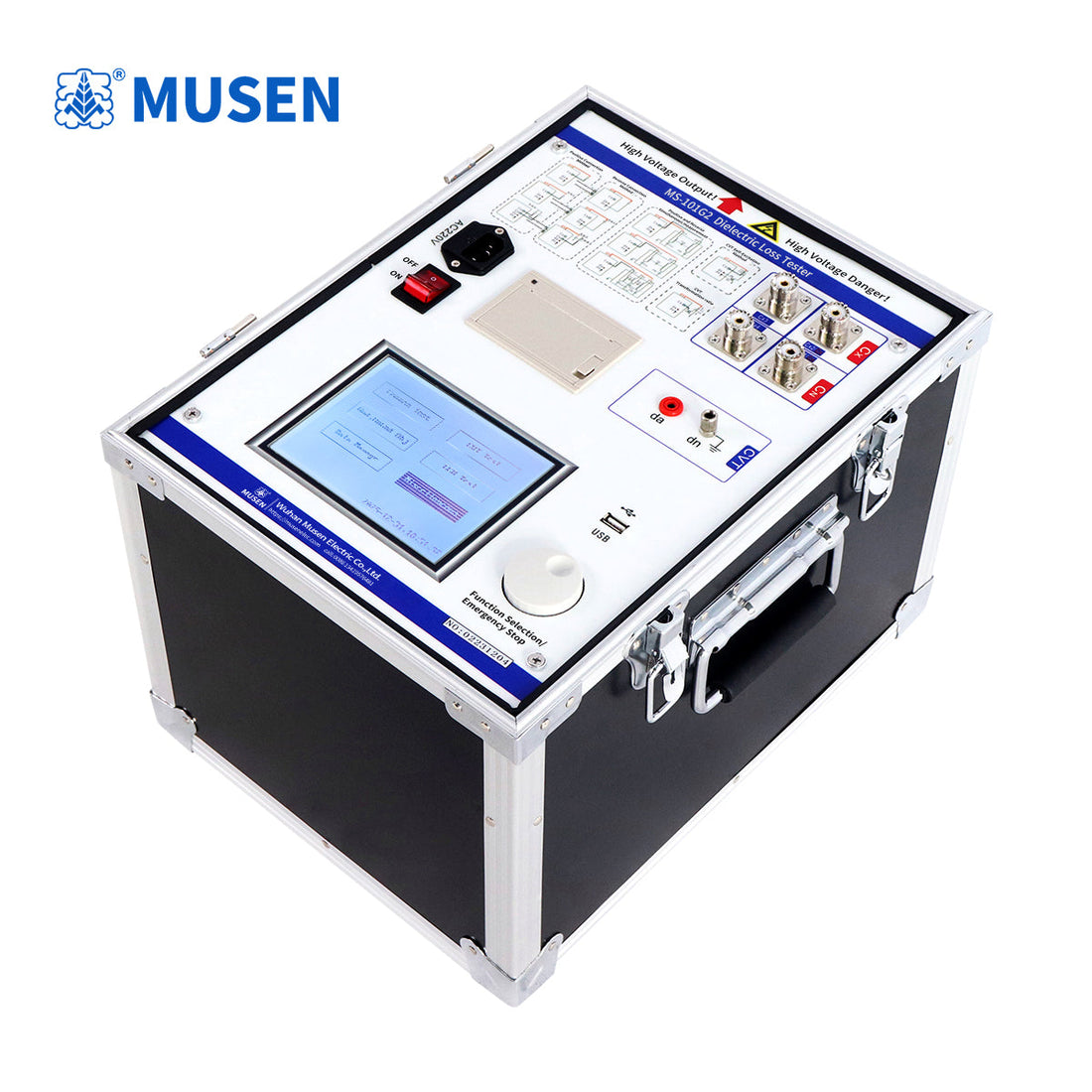

MS-101G2 anti-interference dielectric loss tester, dielectric loss (tanδ) tester, automatic anti-interference dielectric loss tester
