Direct Answer & Introduction

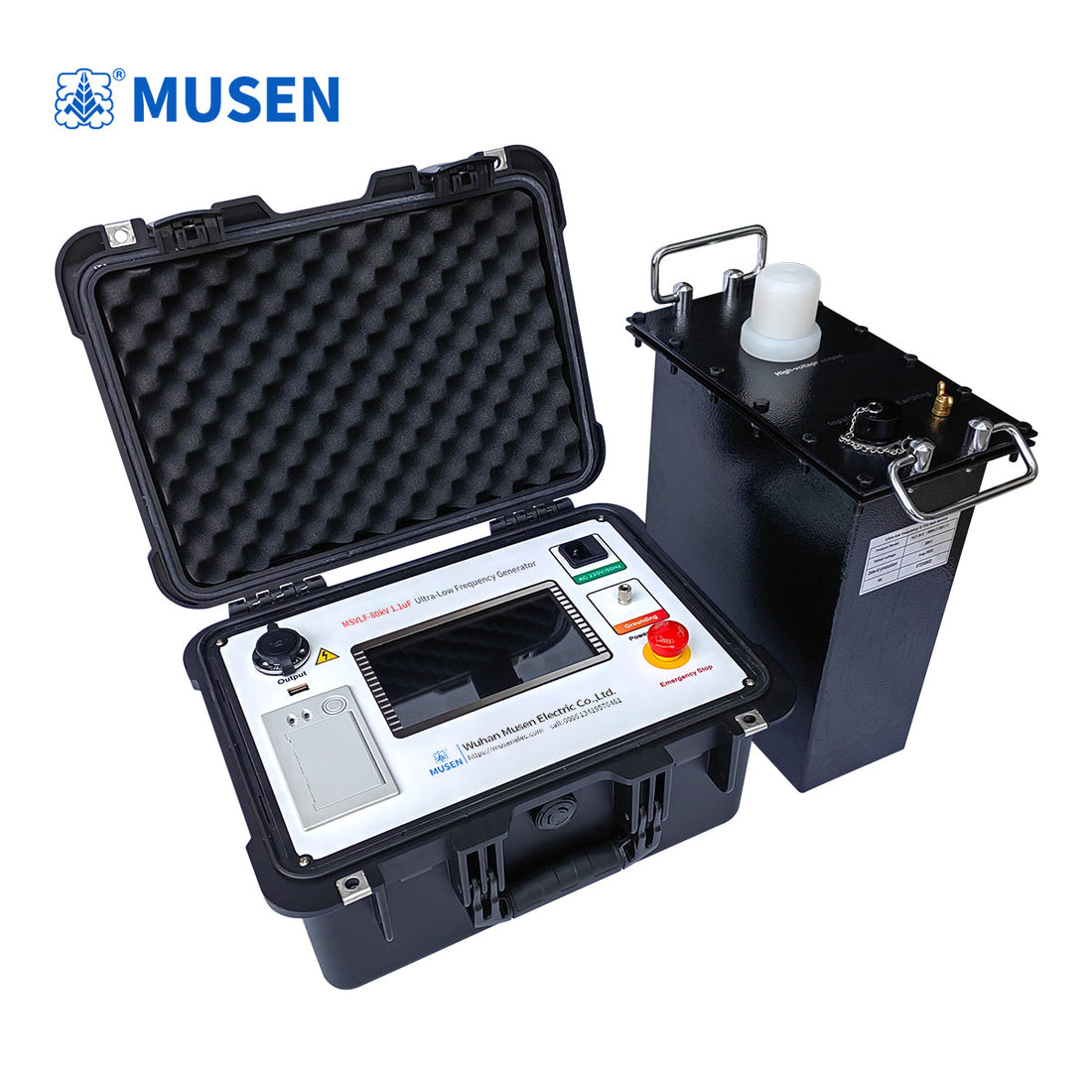

Routine preventive maintenance of medium-voltage power networks depends on reliable diagnostic tools such as the MSVLF-30kV/60kV/90kV/1.1uF 0.1Hz vlf hipot tester. Operating as an advanced Very Low Frequency (Vlf) Generator, this device ensures compliance with international standards including IEC 60502 and IEEE 400.2 for underground cable commissioning and diagnostics.

Ensuring Operator Safety via Optical Isolation and Fast Protection

Field technicians frequently ask: What safety mechanisms protect personnel and equipment during high-voltage insulation breakdowns? The unit addresses this by separating the low-voltage controller from the high-voltage generator using optical control links. Furthermore, multi-stage protection circuits monitor overvoltage and high/low-side overcurrent conditions, triggering protective actions within ≤ 10ms.

Maintaining Feedback Stability Without Capacity Rise

The incorporation of high- and low-voltage closed-loop negative feedback control ensures stable output without capacity rise effects, yielding a voltage waveform distortion factor of ≤ 5% during extended diagnostic routines.

Technical Performance and Operational Parameters

Conclusion on Field Utility and Compliance

With its compact, lightweight architecture designed for field deployment in temperatures ranging from -10°C to +40°C, the MSVLF-30kV/60kV/90kV/1.1uF 0.1Hz provides engineering teams with a reliable, precise, and fully automated solution for modern cable diagnostics.

Frequently Asked Questions (FAQ)

• Q: What international standards govern VLF cable testing procedures?

  • A: VLF testing is primarily governed by IEEE 400.2 ("Guide for Field Testing of Shielded Power Cable Systems Using Very Low Frequency") and IEC standards for cable insulation integrity.

• Q: How are test reports generated in the field?

  • A: Test data is automatically stored in internal memory and can be immediately printed using the built-in thermal printer or exported via the digital interface.
